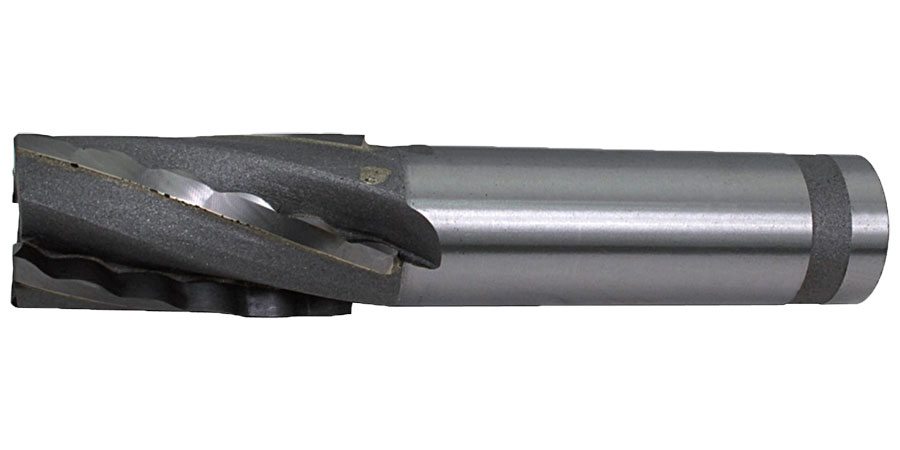

CARBIDE TIPPED ROUGHING END MILL (FRONT WAVY EDGED FLUTE)
Model :
AISD
CARBIDE TIPPED ROUGHING END MILL (FRONT WAVY EDGED FLUTE)
Roughing End Mill (Front Wavy Edged Flute) is welded with carbide flutes, which the chip-release gap is bigger than Roughing End Mill for releasing the chip greatly to save the processing time and extend the life cycle.

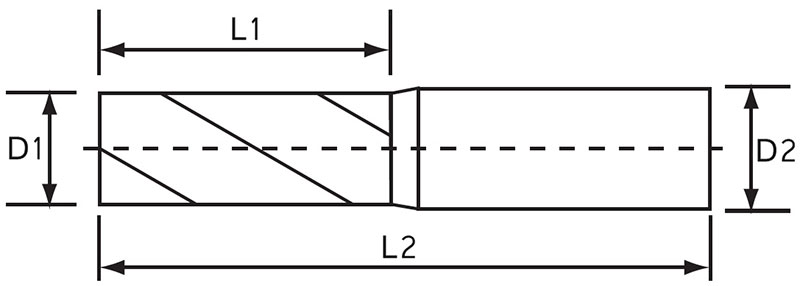

| PART NO. | DIAMETER (D1) | FLUTE LENGTH (L1) | FLUTE | SHANK DIAMETER (D2) | OVERALL LENGTH (L2) |
|---|---|---|---|---|---|
| AISD16-032-3C | 16 | 32 | 3 | 16 | 117 |
| AISD18-040-3C | 18 | 40 | 3 | 20 | 125 |
| AISD20-040-3C | 20 | 40 | 3 | 20 | 125 |
| AISD22-040-3C | 22 | 40 | 3 | 20 | 125 |
| AISD24-050-3C | 24 | 50 | 3 | 25 | 135 |
| AISD25-050-3C | 25 | 50 | 3 | 25 | 135 |
| AISD28-050-4C | 28 | 50 | 4 | 25 | 135 |
| AISD30-050-4C | 30 | 50 | 4 | 32 | 135 |
| AISD32-050-4C | 32 | 50 | 4 | 32 | 135 |
| AISD35-050-4C | 35 | 50 | 4 | 32 | 135 |
| AISD36-050-4C | 36 | 50 | 4 | 32 | 135 |
| AISD40-050-4C | 40 | 50 | 4 | 32 | 135 |
| AISD40-065-4C | 40 | 65 | 4 | 32 | 150 |
