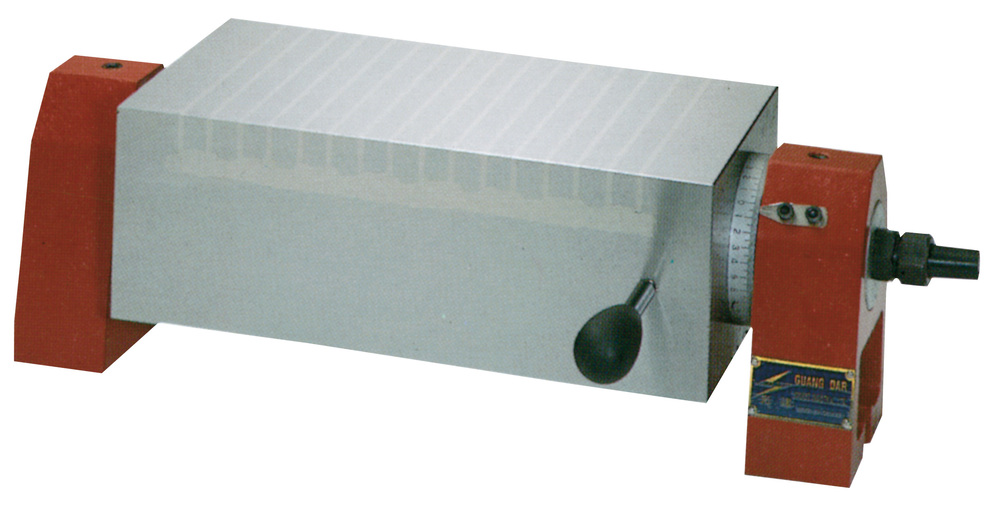

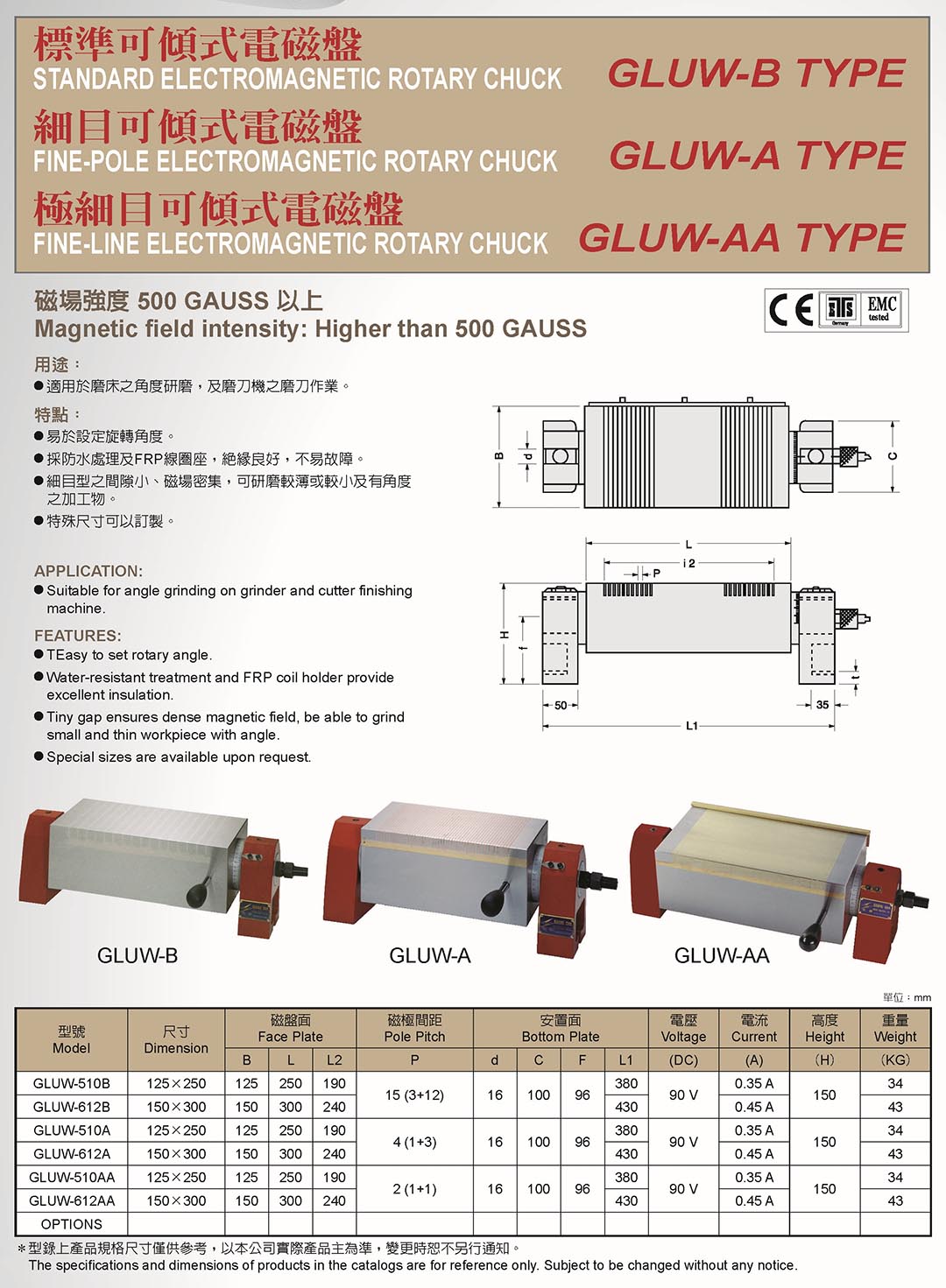

Standard Electromagnetic Rotary Chuck
Standard Electromagnetic Rotary Chuck
APPLICATION:
● Suitable for angle grinding on grinder and cutter finishing machine.
FEATURES﹕
● TEasy to set rotary angle.
● Water-resistant treatment and FRP coil holder provide excellent insulation.
● Tiny gap ensures dense magnetic field, be able to grind small and thin workpiece with angle.
● Special sizes are available upon request.
|

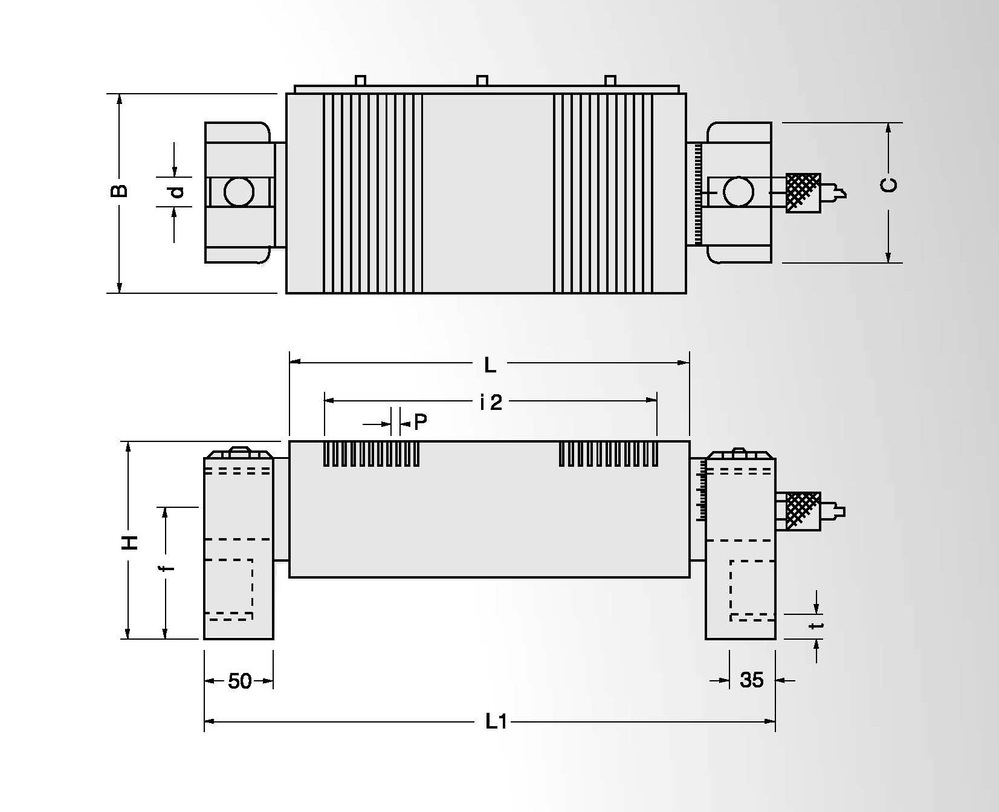

Model |
Dimension |
Face Plate |
Pole Pitch |
Bottom Plate |
Voltage |
Current |
Height |
Weight |
|||||
|
B |
L |
L2 |
P |
d |
C |
F |
L1 |
(DC) |
(A) |
(H) |
(KG) |
||
|
GLUW-510B |
125×250 |
125 |
250 |
190 |
15 (3+12) |
16 |
100 |
96 |
380 |
90 V |
0.35 A |
150 |
34 |
|
GLUW-612B |
150×300 |
150 |
300 |
240 |
430 |
0.45 A |
43 |
||||||
|
GLUW-510A |
125×250 |
125 |
250 |
190 |
4 (1+3) |
16 |
100 |
96 |
380 |
90 V |
0.35 A |
150 |
34 |
|
GLUW-612A |
150×300 |
150 |
300 |
240 |
430 |
0.45 A |
43 |
||||||
|
GLUW-510AA |
125×250 |
125 |
250 |
190 |
2 (1+1) |
16 |
100 |
96 |
380 |
90 V |
0.35 A |
150 |
34 |
|
GLUW-612AA |
150×300 |
150 |
300 |
240 |
430 |
0.45 A |
43 |
||||||
|
OPTIONS |
|
|
|
|
|
|
|
|
|
|
|
|
|
