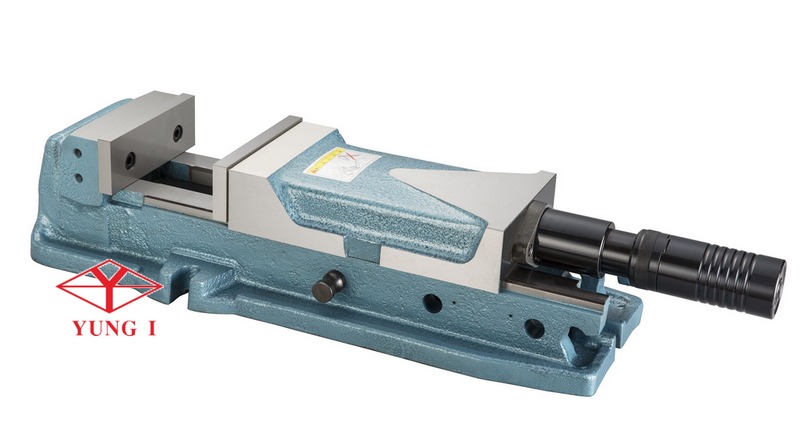

HYDRAULIC MACHINE VISE

Model : PHV

PHV  - HYDRAULIC MACHINE VISE / External Concealed Hydraulic Vise

HYDRAULIC MACHINE VISE / External Concealed Hydraulic Vise

HYDRAULIC MACHINE VISE / External Concealed Hydraulic Vise

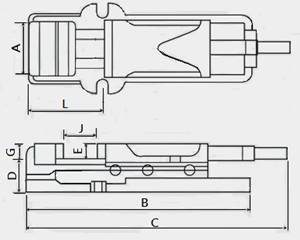

MODEL

A

B

C

D

E

G

L

J

Clamping force kgf

Weight kg

PHV-130

130

505

795

72

55

55

180

220

4000

38

PHV-160

160

605

935

82

58

58

195

310

5000

58

PHV-200

200

700

1035

100

63

63

265

310

6000

95


Features

l          Mechanical / hydraulic type can be used alone, or combination, the hydraulic clampingforce is stable and big, it's suitable for heavy cutting precision machining.

l          Holder of a large opening function, and can quickly move back and forth.

l          Vise body material is high ductility of cast iron, vise both sides of the slide hardened heat (HRC45°), ensure high precision and high wear resistance, high tensile strength.
