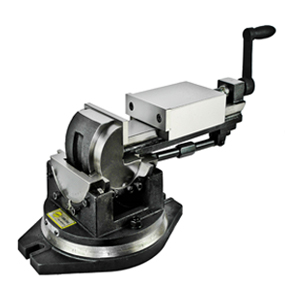

3-WAY ANGLE MILLING VISE
CY -3-WAY ANGLE MILLING VISE
|

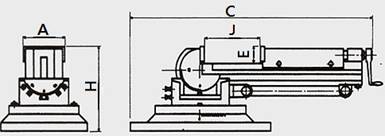

MODEL |
A |
C |
E |
H |
J |
Vertical height |
Weight KG |
|
CY-3" |
80 |
400 |
30 |
144 |
90 |
385 |
17 |
|
CY-4" |
106 |
460 |
38 |
172 |
100 |
470 |
32 |
|
CY-5" |
132 |
625 |
40 |
205 |
140 |
590 |
51 |
Features：
l Angle can be set in three different directions, the plane of rotation up to 360∘, verticalangle can be raised from 0∘to 90∘the tilt angle part can rotate around 45∘degrees and accurate characterization to ensure accuracy.
l Remain stable smooth at any angle tilt for the workpiece.
l Have auxiliary rod, the workpiece allows more stable during machining.
