Round Fine-Pole Permanent Magnetic Chuck

Model : GLC GLC-A

Q'ty :

Description
Specifications

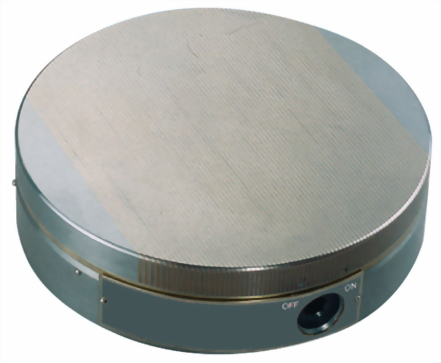

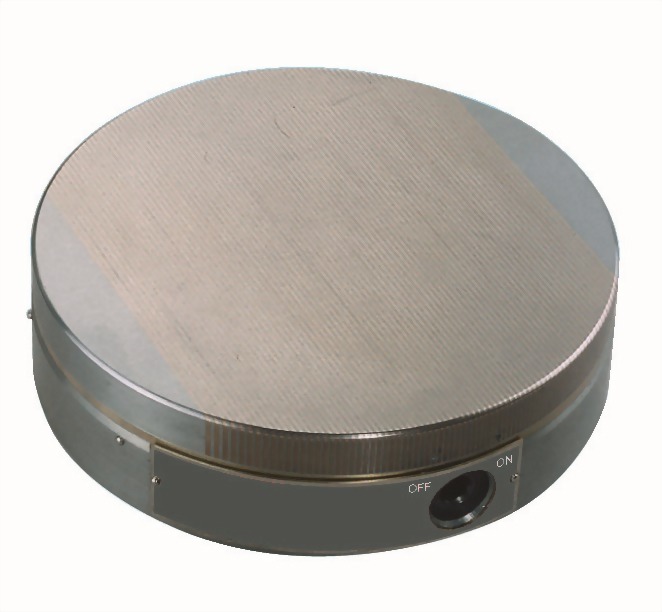

Round Fine-Pole Permanent Magnetic Chuck

APPLICATION:
● Suitable for rotary grinders

FEATURES﹕
● Suitable for grinding of small and thin workpieces. Low residual magnetism, Magnetic strength can be adjusted

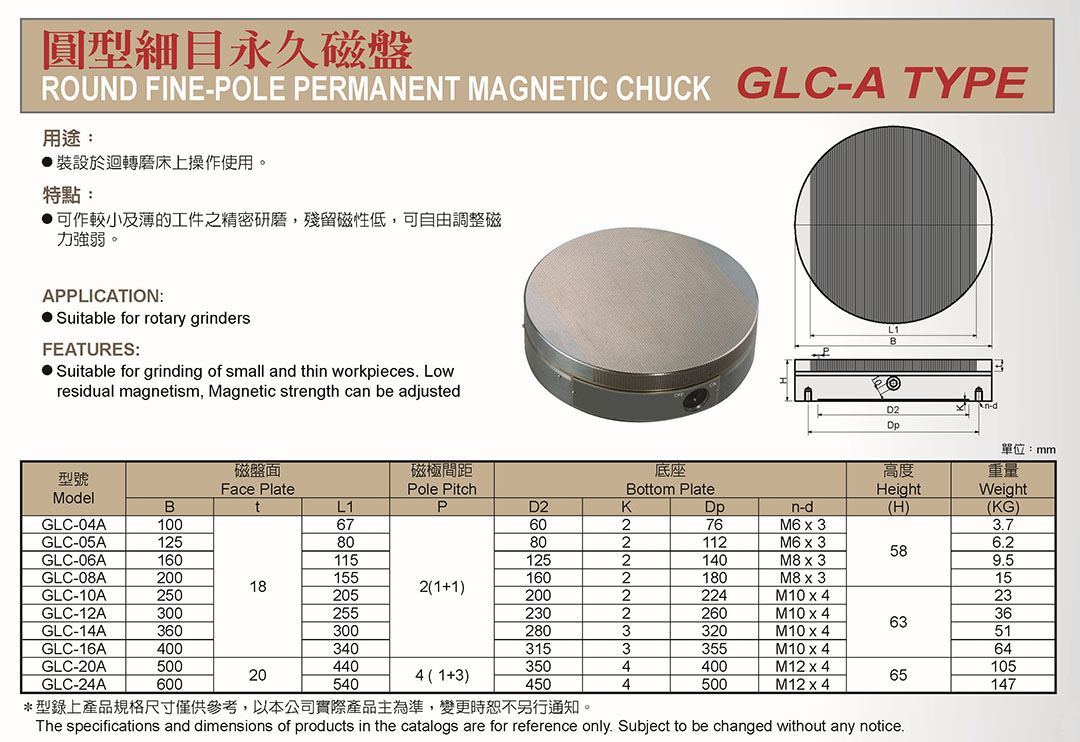

Model : GLC-A TYPE

Model	Face Plate			Pole Pitch	Bottom Plate				Height	Weight
Model	B	t	L1	P	D2	K	Dp	n-d	(H)	(KG)
GLC-04A	100	18	67	2(1+1)	60	2	76	M6 x 3	58	3.7
GLC-05A	125		80		80	2	112	M6 x 3		6.2
GLC-06A	160		115		125	2	140	M8 x 3		9.5
GLC-08A	200		155		160	2	180	M8 x 3		15
GLC-10A	250		205		200	2	224	M10 x 4	63	23
GLC-12A	300		255		230	2	260	M10 x 4		36
GLC-14A	360		300		280	3	320	M10 x 4		51
GLC-16A	400		340		315	3	355	M10 x 4		64
GLC-20A	500	20	440	4 ( 1+3)	350	4	400	M12 x 4	65	105
GLC-24A	600	20	540	4 ( 1+3)	450	4	500	M12 x 4	65	147
