SLIDING BAR VISE

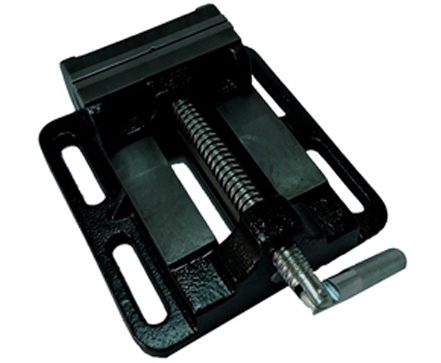

CC-106A SLIDING BAR VISE - Drill press use

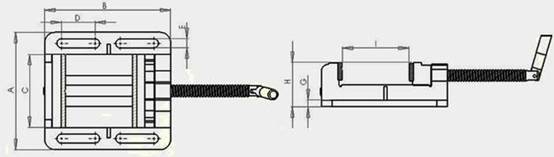

MODEL
A
B
C
D
E
G
H
I
N.W. KG
CC-106A-4
167
180
104
48
13
10
62.5
91
3.6
CC-106A-5
191
208
128
66
13
11
68
110
5.2
CC-106A-6
228
250
153
74.5
14
12
79.5
143
7.5
Feature：
- l Suitable for clamping work piece on drill press machine & milling machine.
- l Designed with solid structure, main body is made of FC15, assemble a pair of heat treated steel jaws with hardness HRC 45°~50°.
- l Jaw pair and handle are surface treated by black oxide finish.
- l Front fixed prismatic jaw with cross V-grooves is designed for clamping work piece firmly in both vertical & horizontal directions.
