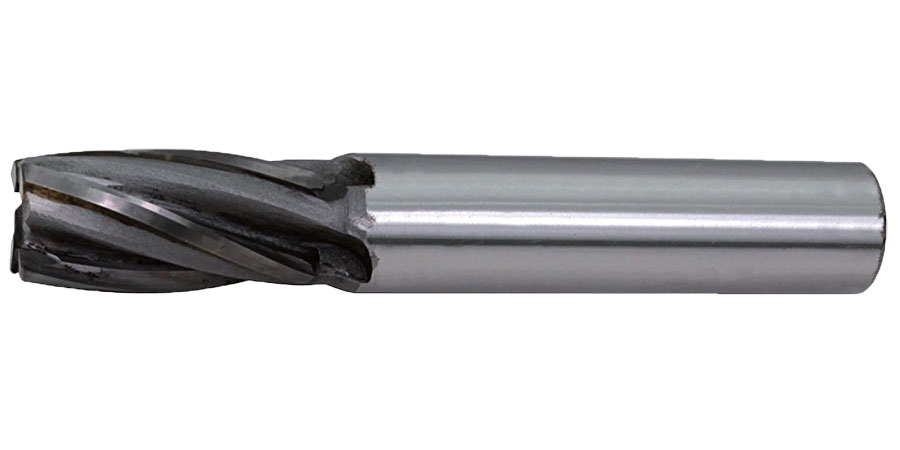

CARBIDE TIPPED FINISHING END MILL
CARBIDE TIPPED FINISHING END MILL
Finishing End Mill is welded with carbide flutes and suitable for side milling and groove machining for finishing surface not for drilling.
high-precision & professional cutting tools are applicable for all kinds of heavy milling processing such as Machine Processing Industries, Metal Mold Industries, Automotive & Automotive Accessories Industries..etc. With skillful technology and high-quality of tungsten material as well as strict surveillance of manufacturing and welding, that Chian Seng provides the high quality products. In order to extend the long life cycle of cutting tools and reduce the customer cost
Standard

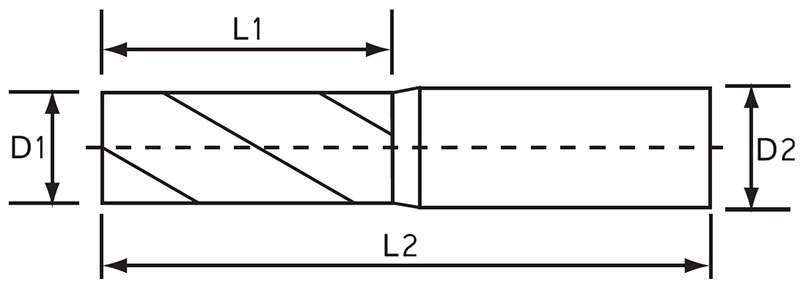

| PART NO. | DIAMETER (D1) | FLUTE LENGTH (L1) | FLUTE | SHANK DIAMETER (D2) | OVERALL LENGTH (L2) |
|---|---|---|---|---|---|
| AISA14-030-2C | 14 | 30 | 2 | 16 | 105 |
| AISA14-030-4C | 14 | 30 | 4 | 16 | 105 |
| AISA15-030-2C | 15 | 30 | 2 | 16 | 105 |
| AISA15-030-4C | 15 | 30 | 4 | 16 | 105 |
| AISA16-030-2C | 16 | 30 | 2 | 16 | 105 |
| AISA16-030-4C | 16 | 30 | 4 | 16 | 105 |
| AISA17-030-2C | 17 | 30 | 2 | 16 | 105 |
| AISA17-030-4C | 17 | 30 | 4 | 16 | 105 |
| AISA17-040-4C | 17 | 40 | 4 | 16 | 115 |
| AISA18-040-2C | 18 | 40 | 2 | 20 | 115 |
| AISA18-040-4C | 18 | 40 | 4 | 20 | 115 |
| AISA19-040-2C | 19 | 40 | 2 | 20 | 125 |
| AISA19-040-4C | 19 | 40 | 4 | 20 | 125 |
| AISA20-040-2C | 20 | 40 | 2 | 20 | 125 |
| AISA20-038-4C | 20 | 38 | 4 | 20 | 125 |
| AISA20-050-4C | 20 | 50 | 4 | 20 | 135 |
| AISA21-040-2C | 21 | 40 | 2 | 20 | 125 |
| AISA21-040-4C | 21 | 40 | 4 | 20 | 125 |
| AISA22-040-2C | 22 | 40 | 2 | 20 | 125 |
| AISA22-040-4C | 22 | 40 | 4 | 20 | 125 |
| AISA23-040-4C | 23 | 40 | 4 | 25 | 125 |
| AISA23-050-2C | 23 | 50 | 2 | 25 | 135 |
| AISA23-050-4C | 23 | 50 | 4 | 25 | 135 |
| AISA24-050-2C | 24 | 50 | 2 | 25 | 135 |
| AISA24-050-4C | 24 | 50 | 4 | 25 | 135 |
| AISA25-050-2C | 25 | 50 | 2 | 25 | 135 |
| AISA25-050-4C | 25 | 50 | 4 | 25 | 135 |
| AISA26-050-2C | 26 | 50 | 2 | 25 | 135 |
| AISA26-050-4C | 26 | 50 | 4 | 25 | 135 |
| AISA27-050-2C | 27 | 50 | 2 | 25 | 135 |
| AISA27-050-4C | 27 | 50 | 4 | 25 | 135 |
| AISA28-050-2C | 28 | 50 | 2 | 32 | 135 |
| AISA28-050-4C | 28 | 50 | 4 | 32 | 135 |
| AISA29-050-2C | 29 | 50 | 2 | 32 | 135 |
| AISA29-050-4C | 29 | 50 | 4 | 32 | 135 |
| AISA30-050-4C | 30 | 50 | 4 | 32 | 135 |
| AISA31-050-2C | 31 | 50 | 2 | 32 | 135 |
| AISA31-050-4C | 31 | 50 | 4 | 32 | 135 |
| AISA32-050-2C | 32 | 50 | 2 | 32 | 135 |
| AISA32-050-4C | 32 | 50 | 4 | 32 | 135 |
| AISA33-050-4C | 33 | 50 | 4 | 32 | 135 |
| AISA34-050-4C | 34 | 50 | 4 | 32 | 135 |
| AISA35-050-4C | 35 | 50 | 4 | 32 | 135 |
| AISA40-050-4C | 40 | 50 | 4 | 32 | 135 |
| AISA42-050-4C | 42 | 50 | 4 | 32 | 135 |
| AISA45-050-4C | 45 | 50 | 4 | 32 | 135 |
| AISA50-050-6C | 50 | 50 | 6 | 32 | 135 |
Long Flute
PART NO.
DIAMETER (D1)
FLUTE LENGTH (L1)
FLUTE
SHANK DIAMETER (D2)
OVERALL LENGTH (L2)
AISA16-050-3C
16
50
3
16
135
AISA16-050-4C
16
50
4
16
135
AISA16-075-3C
16
75
3
16
150
AISA16-075-4C
16
75
4
16
150
AISA18-050-3C
18
50
4
20
135
AISA18-050-4C
18
50
4
20
135
AISA18-075-3C
18
75
3
20
150
AISA18-075-4C
18
75
4
20
150
AISA20-075-4C
20
75
4
20
155
AISA20-100-4C
20
100
4
20
175
AISA22-075-4C
22
75
4
20
155
AISA22-100-4C
22
100
4
20
175
AISA25-075-4C
25
75
4
25
155
AISA25-100-4C
25
100
4
25
185
AISA25-125-4C
25
125
4
25
210
AISA25-150-4C
25
150
4
25
235
AISA30-075-4C
30
75
4
32
160
AISA30-100-4C
30
100
4
32
185
AISA30-125-4C
30
125
4
32
210
AISA30-150-4C
30
150
4
32
235
AISA32-075-4C
32
75
4
32
160
AISA32-100-4C
32
100
4
32
185
AISA32-125-4C
32
125
4
32
210
AISA32-150-4C
32
150
4
32
235
AISA35-075-4C
35
75
4
32
160
AISA35-100-4C
35
100
4
32
185
AISA35-125-4C
35
125
4
32
210
AISA35-150-4C
35
150
4
32
235
AISA40-075-4C
40
75
4
32
160
AISA40-100-4C
40
100
4
32
205
AISA40-100-6C
40
100
6
42
205
AISA40-125-4C
40
125
4
42
225
AISA40-150-4C
40
150
4
42
250
AISA40-200-4C
40
200
4
42
300
AISA50-075-6C
50
75
6
42
160
AISA50-100-6C
50
100
6
42
200
AISA50-125-6C
50
125
6
42
225
AISA50-150-6C
50
150
6
42
250
AISA50-200-6C
50
200
6
42
300
AISA50-250-6C
50
250
6
42
350
AISA50-300-6C
50
300
6
42
400
AISA60-100-6C
60
100
6
42
200
AISA60-125-6C
60
125
6
42
225
