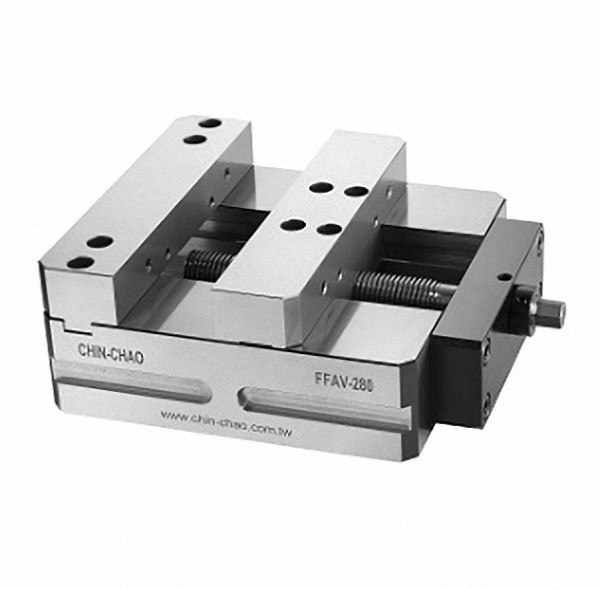

LARGE OPENING 5-AXIS PRECISION VISE FAV-220 & FAV-280

Features：

l   Ø      The accuracy of double clamping position is high forindependentself centering vise.(reaching0.015mm)It is suitable for 4-axis、5-axis CNC machine tools、indexing spacers or precision horizontal and vertical multi-milling and cutting machining centers.

l   Ø     The screw rod is adjusted and processed by high frequency. It increased the strength and wear-resistance substantially.

l   Ø     The heat treatment of jaw plates is HRC45°. It can clamp hardness materials of below HRC40°.

l   Ø      The design of jaw plates holes for moving block. It can change and increase the needing jaw plates fast to match the clamping demands for different machining work pieces. The clamping work pieces will be used more diverse and flexible.

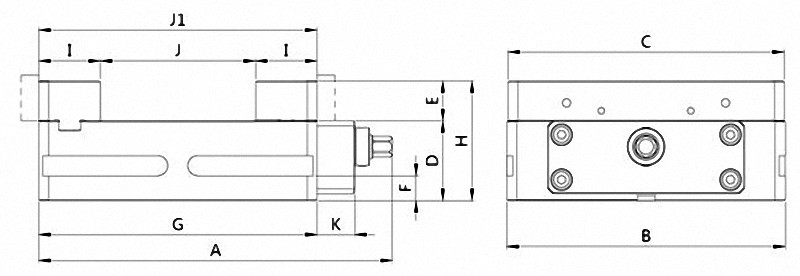

l   Ø     The vise has two clamping ways(J~J1) to suit for different machining ways and work piece size. To provide flexible clamping ways.

l   Ø     The height of vise body has fixed dimension.（D）It can be used by many quantities of vises at the same time.
