High Precision Drilling Machine
High Precision Drilling Machine

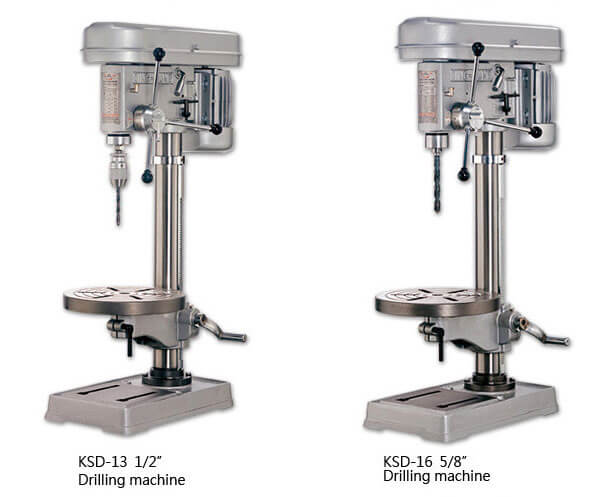

KSD-13 1/2" Drilling machine KSD-16 5/8" Drilling machine

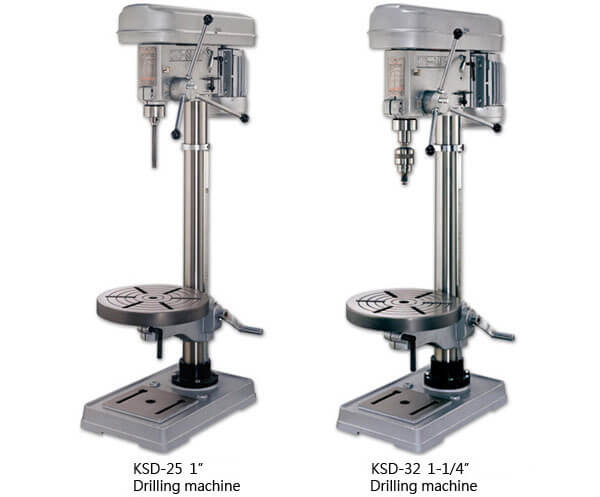

KSD-25 1" Drilling machine KSD-32 1-1/4" Drilling machine

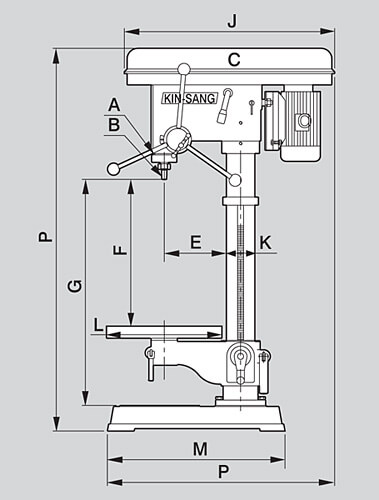

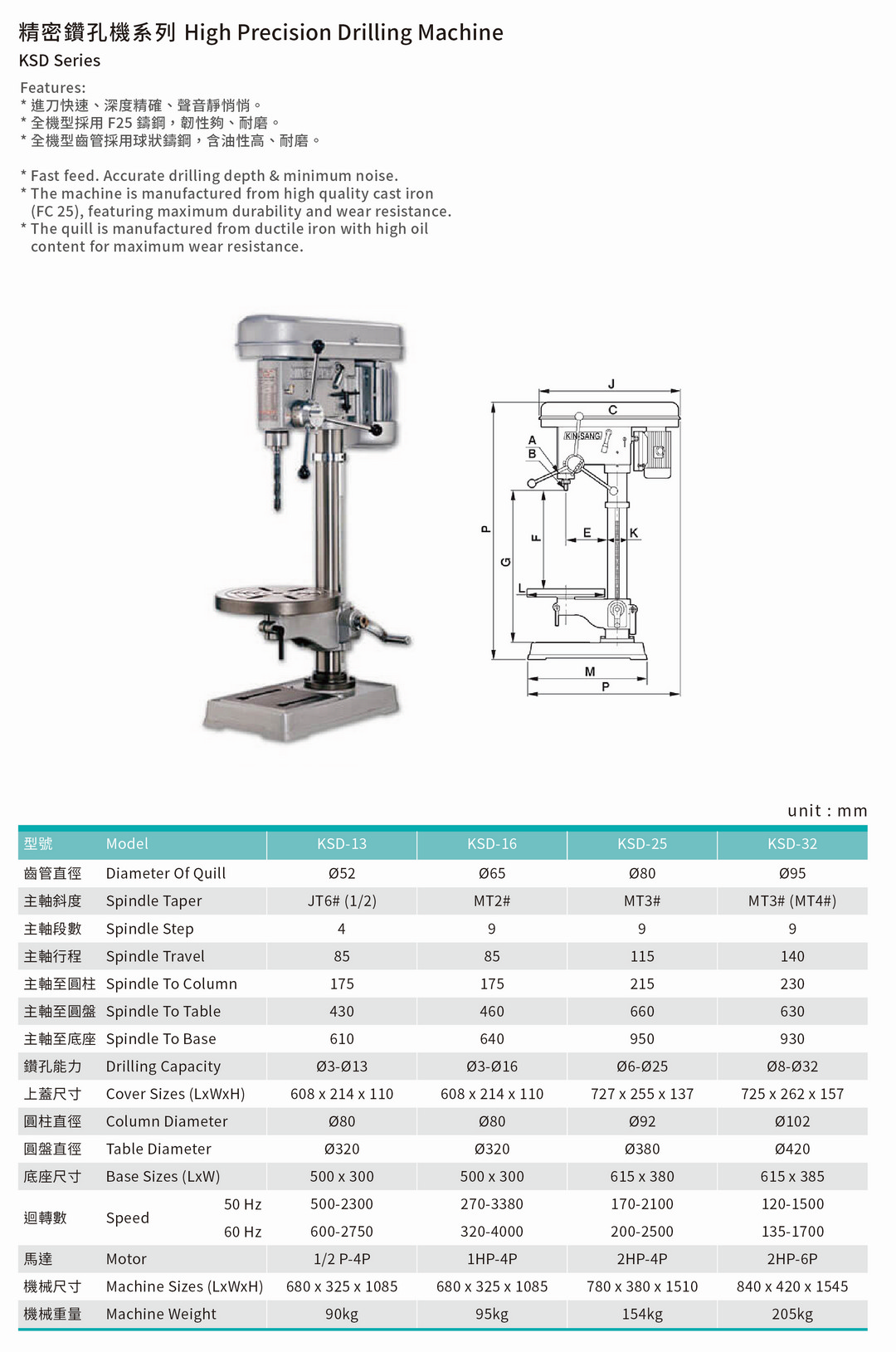

FEATURES
unit : mm
MODEL
KSD-13
KSD-16
KSD-25
KSD-32
A
Diameter of quill
Ø52
Ø65
Ø80
Ø95
B
Spindle taper
JT 6# (1/2)
MT 2#
MT 3#
MT 3# (MT 4#)
C
Spindle step
4
9
9
9
D
Spindle travel
85
85
115
140
E
Spindle to column
175
175
215
230
F
Spindle to table
430
460
660
630
G
Spindle to base
610
640
950
930
H
Drilling capacity
Ø3-Ø13
Ø3-Ø16
Ø6-Ø25
Ø8-Ø32
J
Cover sizes
608x214x110
608x214x110
727x255x137
725x262x157
K
Column diameter
Ø80
Ø80
Ø92
Ø102
L
Table diameter
Ø320
Ø320
Ø380
Ø420
M
Base sizes
500x300
500x300
615x380
615x385
N
Speed 50Hz
500-2300
270-3380
170-2100
120-1500
Speed 60Hz
600-2750
320-4000
200-2500
135-1700
O
Motor
1/2; 1(HP)
1/2; 1(HP)
1; 2(HP)
2(HP)
P
Machine sizes
680x325x1085
680x325x1085
780x380x1510
840x420x1545
Q
Machine weight
90kg
95kg
154kg
205kg
Hexangular collets and chucks and other
accessories are not included for the above machine products
