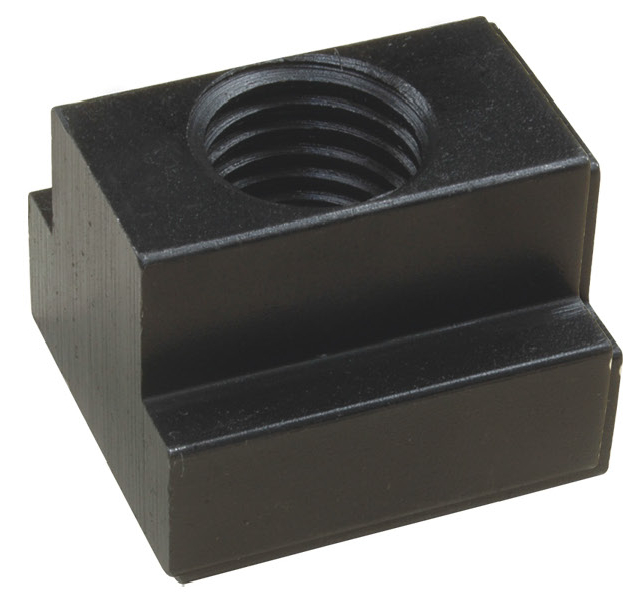

T slot nut
CK-TN T slot nut
l Purpose: Apply on the T slotted working table
l Material: S45C, black oxide furnished
l Heat treatment: HRC32±5°
l Product spec.:
Inch size 3/8”/1/2”/5/8”/3/4”7/8”/1”；
Metric size M8/ M10/M12 /M14/M16/M18/M20/M24
|

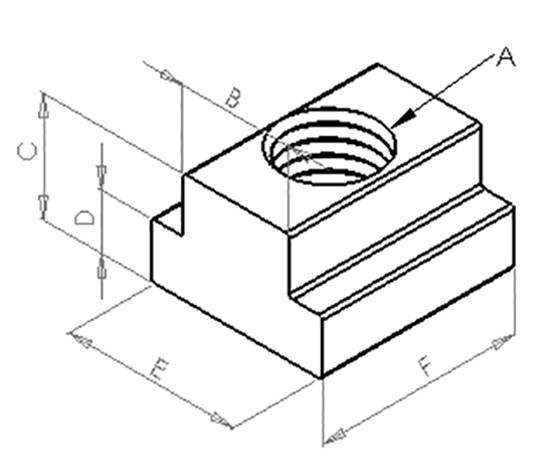

Order no. |
A (Metric ) |
B |
C |
D |
E |
F |
|
TNM-22021 |
M8X1.25 |
9.7 |
12 |
6 |
16 |
22 |
|
TNM-23031 |
M10X1.5 |
11.5 |
12 |
6.8 |
17.5 |
22 |
|
TNM-24041A |
M12X1.75(S) |
13.8 |
16 |
8 |
22 |
28 |
|
TNM-24041B |
M12X1.75(M) |
15.5 |
16 |
8 |
25 |
28 |
|
TNM-24041C |
M12X1.75(L) |
17.5 |
19 |
11 |
28 |
31 |
|
TNM-24545 |
M14X2.0 |
15.5 |
16 |
8 |
25 |
28 |
|
TNM-25051 |
M16XX2.0 |
17.5 |
19 |
11 |
28 |
31 |
|
TNM-26061 |
M18X2.5 |
19.5 |
24 |
12 |
32 |
38 |
|
TNM-27071 |
M20X2.5 |
21.7 |
28 |
14 |
35 |
38 |
|
TNM-28081 |
M24X3.0 |
27.5 |
36 |
18 |
44 |
49 |
|
Order no. |
A (Inch ) |
B |
C |
D |
E |
F |
|
TN-22021A |
5/16"-18 |
9.2 |
12 |
4.5 |
16 |
22 |
|
TN-23031A |
3/8"-16 |
10.8 |
12 |
5.5 |
17.5 |
22 |
|
TN-23031B |
11.5 |
12 |
6.8 |
22 |
22 |
|
|
TN-23031C |
13.8 |
16 |
8 |
22 |
28 |
|
|
TN-24041A |
1/2"-12 |
13.8 |
16 |
8 |
22 |
28 |
|
TN-24041B |
15.5 |
16 |
8 |
25 |
28 |
|
|
TN-24041C |
17.5 |
19 |
11 |
28 |
31 |
|
|
TN-24042A |
1/2"-13UNC |
13.8 |
16 |
8 |
22 |
28 |
|
TN-24042B |
15.5 |
16 |
8 |
25 |
28 |
|
|
TN-24042C |
17.5 |
19 |
11 |
28 |
31 |
|
|
TN-25051A |
5/8"-11 |
17.5 |
19 |
11 |
28 |
31 |
|
TN-25051B |
18.6 |
19 |
12 |
31.8 |
31 |
|
|
TN-25051C |
20.2 |
25 |
14 |
32 |
38 |
|
|
TN-26061A |
3/4"-10 |
20.2 |
25 |
14 |
32 |
38 |
|
TN-26061B |
21.7 |
28 |
14 |
35 |
38 |
|
|
TN-26061C |
25 |
25 |
15.5 |
40 |
44.5 |
|
|
TN-27071A |
7/8"-9 |
25 |
25 |
15.5 |
40 |
38 |
|
TN-28081A |
1"-8 |
27.5 |
36 |
18 |
44 |
49 |
|
