Horizontal and Vertical Rotary Table

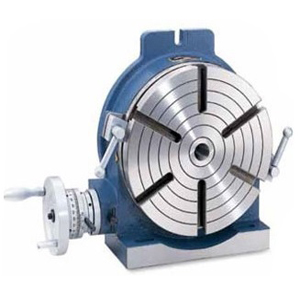

Horizontal and Vertical Rotary Table HV
Horizontal and Vertical Rotary Table HV
|

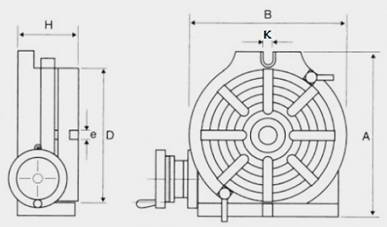

model Model |
Countertops Table |
size Base dimension |
T -slot T-Slot |
center Taper Center Sleeve |
turbine Reduction ratio Worm Gear ratio |
weight KG |
|||
|
D |
H |
e |
A |
B |
K |
||||
|
HV-6' |
150 |
82 |
11 |
200 |
195 |
11 |
MT-2 |
90 : 1 |
14 |
|
HV-8' |
200 |
120 |
12 |
280 |
200 |
16 |
MT-4 |
34 |
|
|
HV-10' |
250 |
120 |
12 |
310 |
250 |
16 |
MT-4 |
42 |
|
|
HV-12' |
300 |
120 |
15 |
365 |
300 |
16 |
MT-4 |
51 |
|
|
HV-14' |
350 |
140 |
16 |
592 |
380 |
16 |
MT-4 |
97 |
|
|
HV-16" |
400 |
140 |
16 |
510 |
435 |
18 |
MT-5 |
130 |
|
