HSS COUNTERSINKS
Model :
LHS-AVTU
HSS COUNTERSINKS
High Speed Steel Chamfer / Countersink Cutter made of HSS for the wide range of applications not only suitable for chamfering of ordinary machined parts, but also suitable for chamfering and deburring of precision hard-to-chamfered parts. Its chip could be more conveniently dropped and doesn't delay the efficiency due to tool clogged by chip. It is for drill machining not for milling.

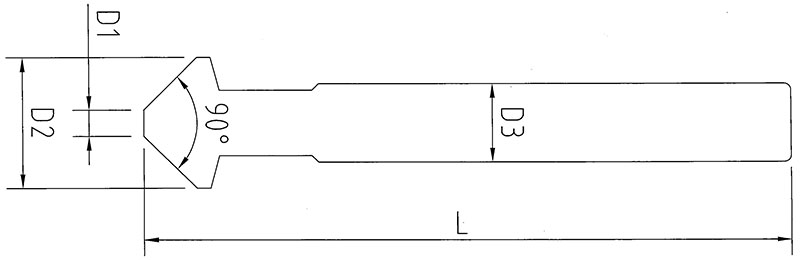

| PART NO. | PILOT DIAMETER (D1) | DIAMETER (D2) | FLUTE | SHANK DIAMETER (D3) | OVERALL LENGTH (L) |
|---|---|---|---|---|---|
| LHS-AVTU08.4-090 | 2 | 8.4 | 3 | 6 | 50 |
| LHS-AVTU10.5-090 | 2.5 | 10.5 | 3 | 6 | 50 |
| LHS-AVTU12.5-090 | 2.8 | 12.5 | 3 | 8 | 56 |
| LHS-AVTU14-090 | 3.1 | 14 | 3 | 10 | 56 |
| LHS-AVTU16.5-090 | 3.2 | 16.5 | 3 | 10 | 60 |
| LHS-AVTU18-090 | 2.17 | 18 | 3 | 10 | 56 |
| LHS-AVTU20.5-090 | 3.5 | 20.5 | 3 | 10 | 63 |
| LHS-AVTU25-090 | 3.8 | 25 | 3 | 10 | 67 |
| LHS-AVTU31-090 | 4.2 | 31 | 3 | 12 | 71 |
