• CARBIDE TIPPED CYLINDRICAL POWERFUL ROUGHING MILLING CUTTER (SEMI-CIRCULAR FLUTE)

CARBIDE TIPPED CYLINDRICAL POWERFUL ROUGHING MILLING CUTTER (SEMI-CIRCULAR FLUTE)

Model : AUTO

CARBIDE TIPPED CYLINDRICAL POWERFUL ROUGHING MILLING CUTTER (SEMI-CIRCULAR FLUTE)

carbide-tipped-cylindrical-powerful-roughing-milling-cutter-_semi-circular-flute_.jpg

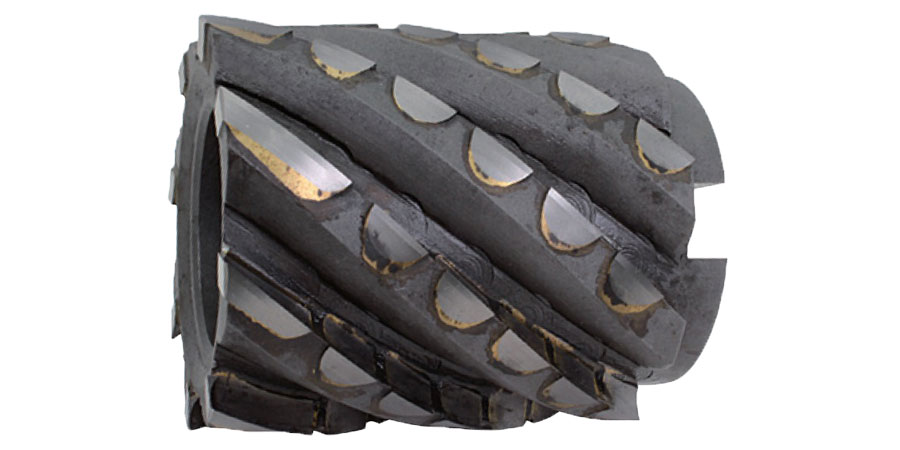

Cylindrical Powerful Roughing Milling Cutter (Semi-Circular Flute) is welded with carbide flutes, it is milling rapider and cutting heavier better than Roughing End Mill as well as with good chip release, excellent cutting ability and high metal cutting rate better than Roughing End Mill.



carbide-tipped-cylindrical-powerful-roughing-milling-cutter-_semi-circular-flute__1.jpg

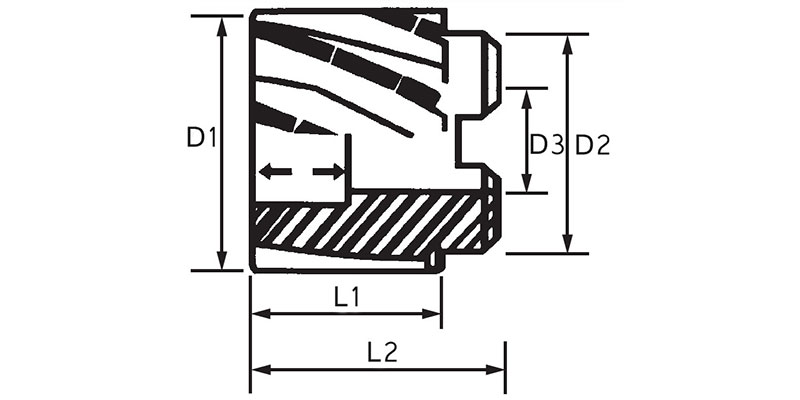

PART NO. DIAMETER (D1) FLUTE LENGTH (L1) FLUTE CONNECTING DIAMETER (D2) BORE DIAMETER (D3) OVERALL LENGTH (L2)
AUTO50-50 50 50 5 48 25.4 70
AUTO50-75 50 75 5 48 25.4 95
AUTO50-100 50 100 5 48 25.4 120
AUTO60-60 60 60 6 55 31.75 75
AUTO60-75 60 75 6 55 31.75 90
AUTO60-100 60 100 6 55 31.75 115
AUTO75-50 75 50 8 60 31.75 65
AUTO75-75 75 75 8 60 31.75 90
AUTO75-100 75 100 8 60 31.75 115
AUTO75-125  75 125 8 60 31.75 140
AUTO80-80  80 80 8 60 31.75 95
AUTO80-100 80 100 8 60 31.75 115
AUTO100-65 100 65 12 70 31.75 85
AUTO100-100 100 100 12 70 31.75 120
