CK-SC Step clamp
CK-SC Step clamp

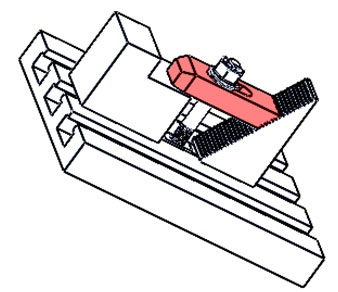

l Purpose: Engage the teeth into teeth of step block to adjust the clamping height
l Material: S45C, black oxide furnished
l Heat treatment: HRC32±5°

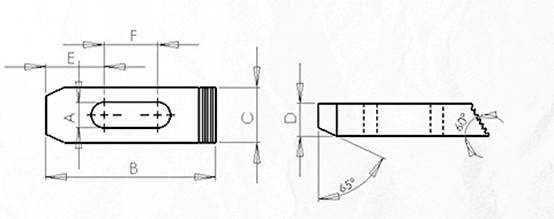

Order no.
Model
A
B
C
D
E
F
Applied stud
Inch
Metric
SC-63031
3/8(S)
11
65
25.4
12.7
25.5
19
3/8
M10
SC-63032
3/8(M)
11
100
26
15
30.5
30
SC-63033
3/8(L)
11
150
28.5
19
40.5
54
SC-64041
1/2(S)
15
65
30
13
25
16
1/2
M12-M14
SC-64042
1/2(M)
15
100
32
19
34
31
SC-64043
1/2(L)
15
150
32
22
47
55
SC-65051
5/8(S)
18
65
32
16
25
14
5/8
M16
SC-65052
5/8(M)
18
100
38
19
33
30
SC-65053
5/8(L)
18
150
38
22
44
57
SC-66061
3/4(S)
21
100
38
19
33
30
3/4
M18-20
SC-66062
3/4(M)
21
150
38
25
48
50
SC-66063
3/4(L)
21
200
44.5
28.5
63
70
SC-68081
1(S)
26
150
49
32
51
39
7/8-1
M22,M24
SC-68082
1(M)
26
200
49
38
63
69
SC-68083
1(L)
26
250
49
38
85
74
|
