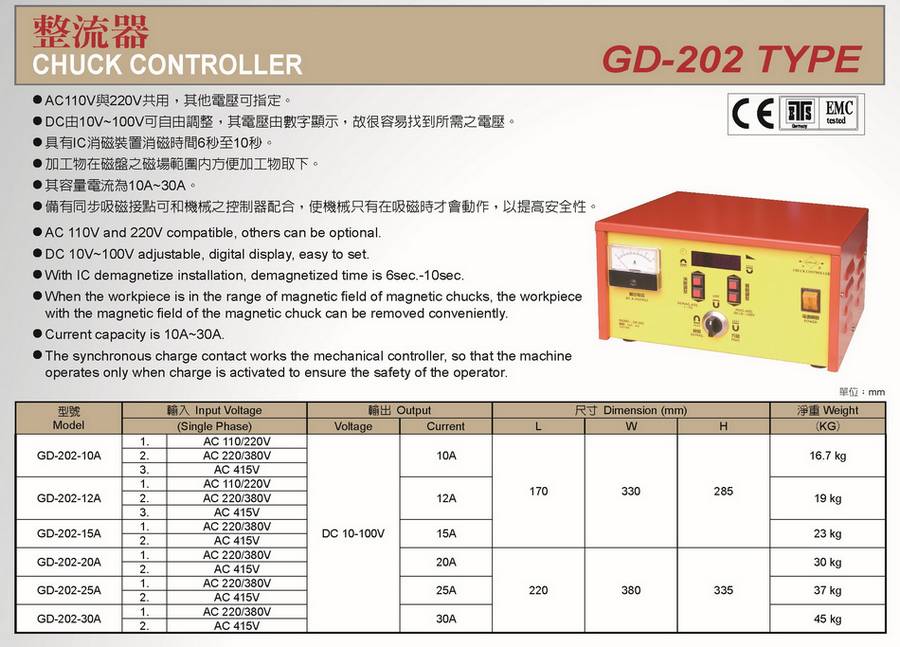

Chuck Controller GD-202

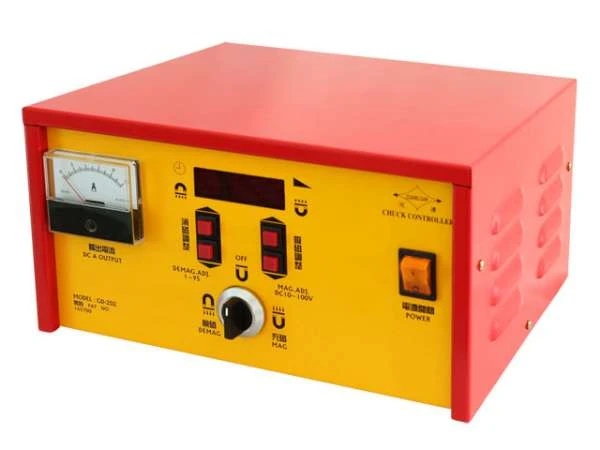

GD-202 Chuck Controller
● AC 110V and 220V compatible, others can be optional.
● DC 10V~100V adjustable, digital display, easy to set.
● With IC demagnetize installation, demagnetized time is 6sec.-10sec.
● When the workpiece is in the range of magnetic field of magnetic chucks, the workpiece with the magnetic field of the magnetic chuck can be removed conveniently.
● Current capacity is 10A~30A.
● The synchronous charge contact works the mechanical controller, so that the machine operates only when charge is activated to ensure the safety of the operator.
|
Model |
Input Voltage |
Output |
Dimension (mm) |
Weight |
||||
|
(Single Phase) |
Voltage |
Current |
L |
W |
H |
(KG) |
||
|
GD-202-10A |
1. |
AC 110/220V |
DC 10-100V |
10A |
170 |
330 |
285 |
16.7 kg |
|
2. |
AC 220/380V |
|||||||
|
3. |
AC 415V |
|||||||
|
GD-202-12A |
1. |
AC 110/220V |
12A |
19 kg |
||||
|
2. |
AC 220/380V |
|||||||
|
3. |
AC 415V |
|||||||
|
GD-202-15A |
1. |
AC 220/380V |
15A |
23 kg |
||||
|
2. |
AC 415V |
|||||||
|
GD-202-20A |
1. |
AC 220/380V |
20A |
220 |
380 |
335 |
30 kg |
|
|
2. |
AC 415V |
|||||||
|
GD-202-25A |
1. |
AC 220/380V |
25A |
37 kg |
||||
|
2. |
AC 415V |
|||||||
|
GD-202-30A |
1. |
AC 220/380V |
30A |
45 kg |
||||
|
2. |
AC 415V |
|||||||
