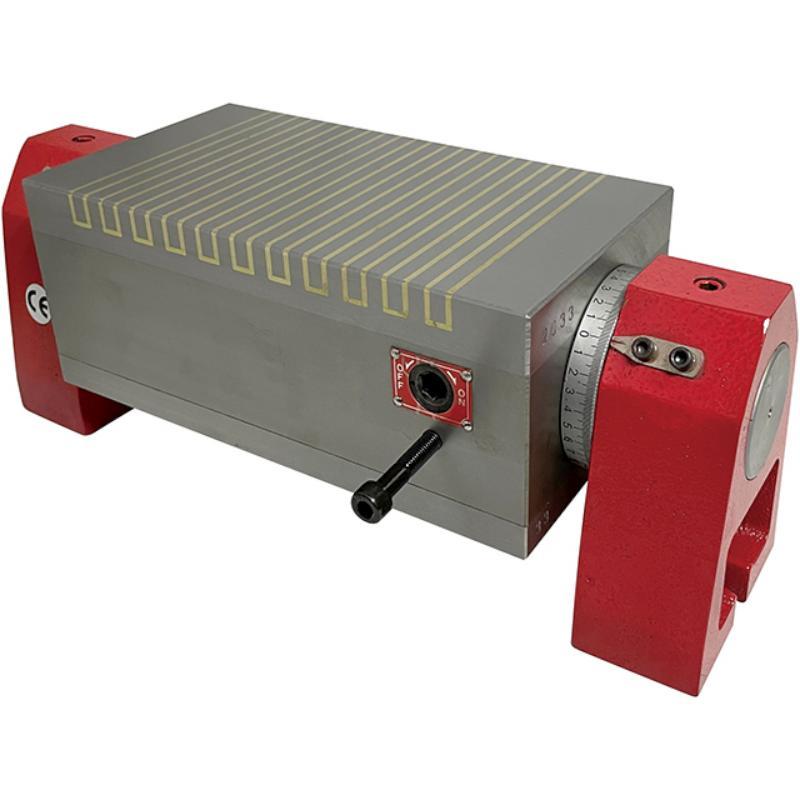

Permanent Magnetic Rotary Chuck
Model :
GLU
Permanent Magnetic Rotary Chuck
PERMANENT MAGNETIC ROTARY CHUCK
APPLICATION:
● Suitable for light cutting and grinding on surface grinder,EDM and cutter finishing machine.
FEATURES﹕
● Easy for working of angle workpiece by the aid of graduation dial.
● Integrated molding of chuck and spindle with high accuracy.
● The shape of pin is arc which can protect the round spindle from being damaged.
● Suitable for light cutting and grinding on surface grinder,EDM and cutter finishing machine.
FEATURES﹕
● Easy for working of angle workpiece by the aid of graduation dial.
● Integrated molding of chuck and spindle with high accuracy.
● The shape of pin is arc which can protect the round spindle from being damaged.
Model : GLU-B TYPE
unit：mm
|
Model |
Dimension |
Face Plate |
Pole Pitch |
迴轉座 |
Height |
Weight |
|||||||
|
B |
L |
L2 |
L2 |
A |
B |
t |
F |
L1 |
d |
(H) |
(KG) |
||
|
GLU-510B |
125×250 |
125 |
250 |
191 |
8.5 (2.5+6) |
50 |
35 |
17 |
96 |
380 |
16 |
150 |
26 |
|
GLU-612B |
150×300 |
150 |
300 |
245 |
430 |
36 |
|||||||
