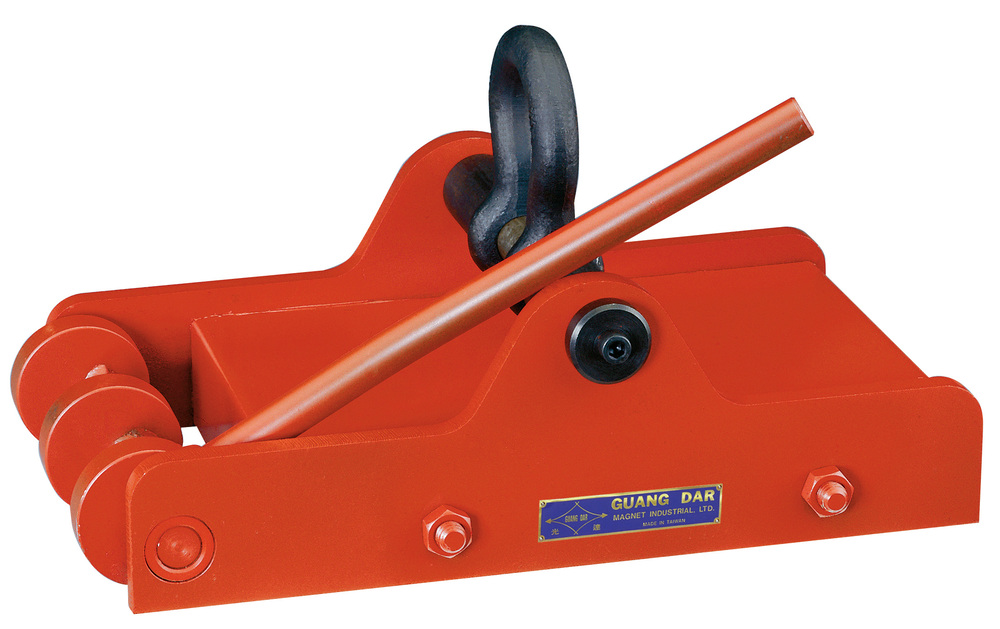

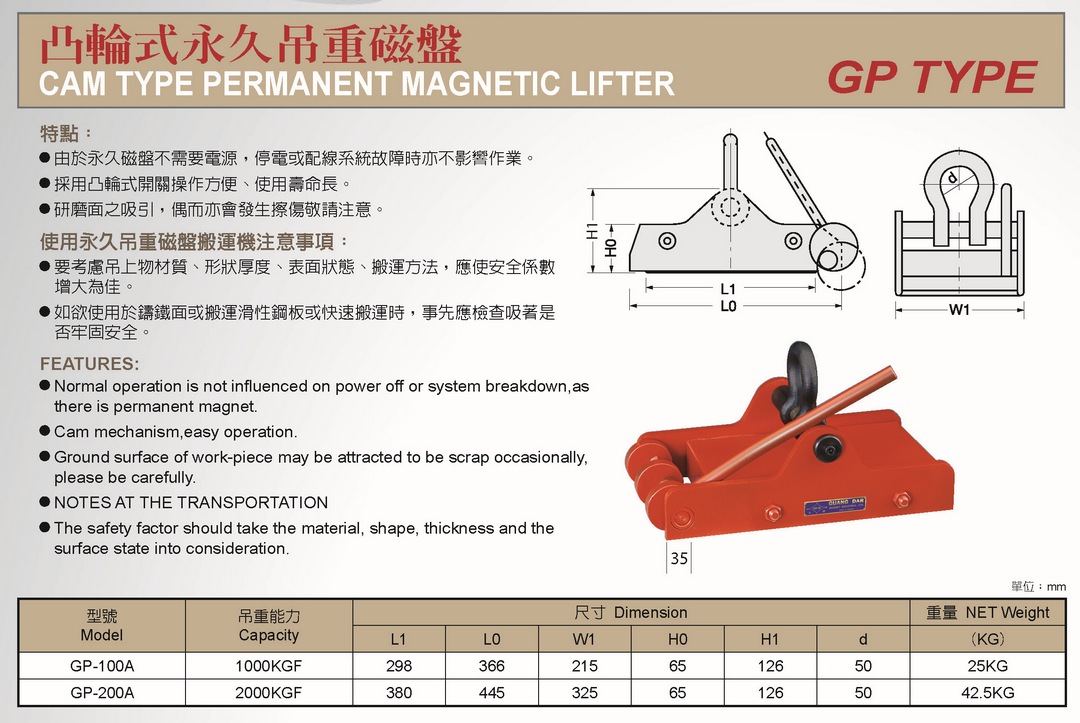

Cam Type Permanent Magnetic Lifter GP Type
Model :
GP
Cam Type Permanent Magnetic Lifter GP Type
FEATURES﹕
● Normal operation is not influenced on power off or system breakdown,as there is permanent magnet.
● Cam mechanism,easy operation.
● Ground surface of work-piece may be attracted to be scrap occasionally, please be carefully.
● NOTES AT THE TRANSPORTATION
● The safety factor should take the material, shape, thickness and the surface state into consideration.
● Normal operation is not influenced on power off or system breakdown,as there is permanent magnet.
● Cam mechanism,easy operation.
● Ground surface of work-piece may be attracted to be scrap occasionally, please be carefully.
● NOTES AT THE TRANSPORTATION
● The safety factor should take the material, shape, thickness and the surface state into consideration.

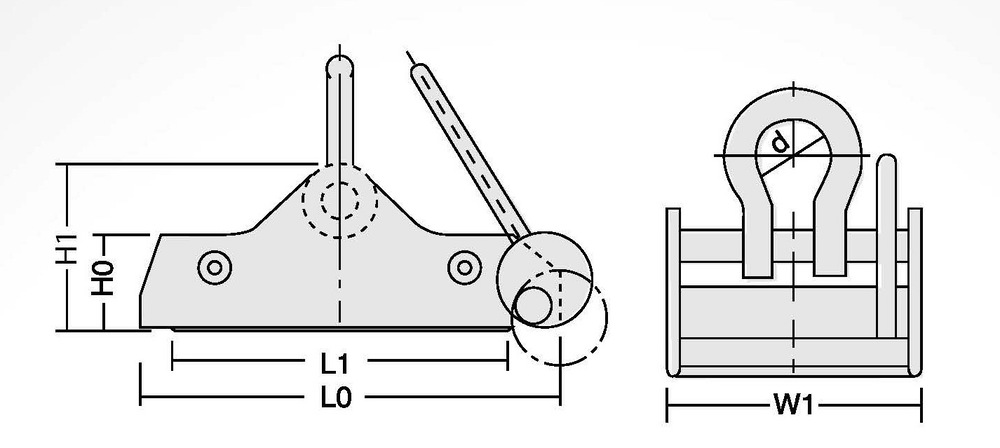

Model : GP TYPE
unit：mm
|
Model |
Capacity |
Dimension |
NET Weight |
|||||
|
L1 |
L0 |
W1 |
H0 |
H1 |
d |
(KG) |
||
|
GP-100A |
1000KGF |
298 |
366 |
215 |
65 |
126 |
50 |
25KG |
|
GP-200A |
2000KGF |
380 |
445 |
325 |
65 |
126 |
50 |
42.5KG |
