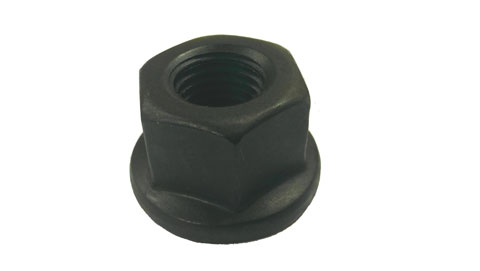

法蘭螺帽 CK-FN  Flange nut



l          Purpose: Combine with stud and clamp for all kind of clipping application

l          Material: S45C, black oxide furnished

l          Hardness of heat treatmentHRC32±5°

l          Product spec.: nch size 3/8”/1/2”/5/8”/3/4”7/8”/1” Metric size M8/ M10/M12 /M14/M16/M18/M20/M24

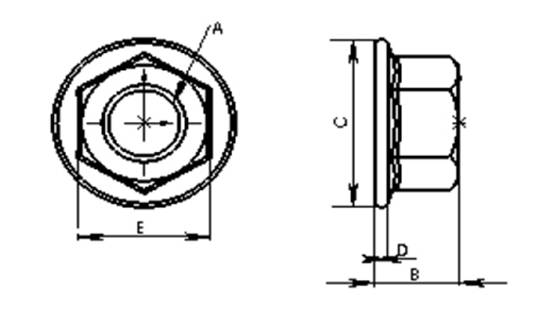

Order no.

A (metric)

B

C

D

E

FNM-12021

M8X1.25

8

18

2

13

FNM-13031

M10X1.5

13

22

4

17

FNM-14041

M12X1.75

17

30

4

21

FNM-14545

M14X2.0

17

30

4

21

FNM-15051

M16X2.0

22

35

5

26

FNM-16061

M18X2.5

25

42

7

32

FNM-17071

M20X2.5

27

42

7

32

FNM-17575

M22X2.5

29

45

7

36

FNM-18081

M24X3.0

32

50

7

41



Order no.

A (Inch)

B

C

D

E

FN-12021

5/16"-18

12

20

2

14

FN-13031

3/8"-16

13

22

4

17

FN-14041

1/2"-12

17

30

4

21

FN-14042

1/2"-13UNC

17

30

4

21

FN-15051

5/8"-11

22

35

5

26

FN-16061

3/4"-10

27

42

7

32

FN-17071

7/8"-9

29

45

7

36

FN-18081

1"-8

32

50

7

41
