Standard Electromagnetic Chuck GI

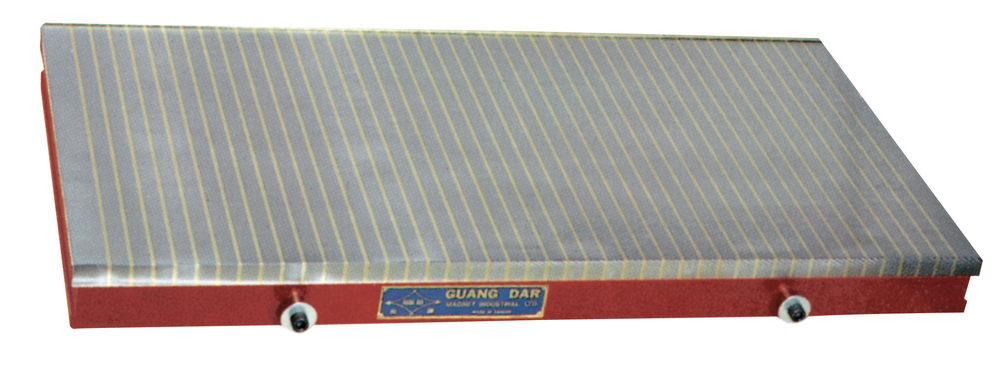

Standard Electromagnetic Chuck
APPLICATION:
● Suitable for light grinding and light cutting on grinder and double housing grinder.
FEATURES﹕
● Plate is made under special soldering treatment to secure perfect soldering joint.
● The body is a mono iron plate with line groove to prevent the water leakage and transformation.
● Multi-insulated interior ensures long coil life.

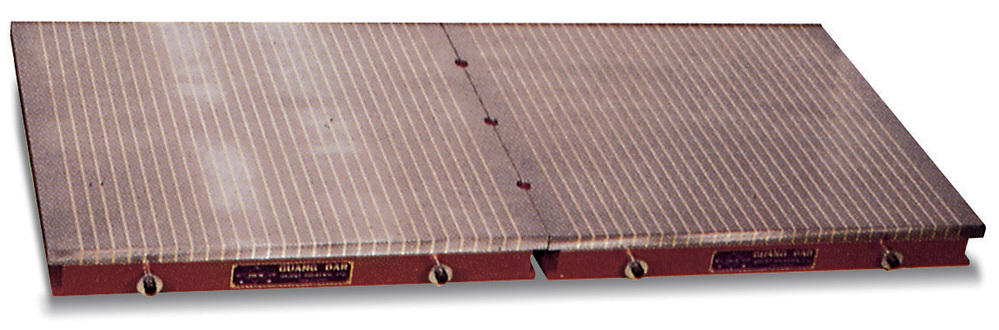

● Available for use of multi-chucks on the double housing grinder

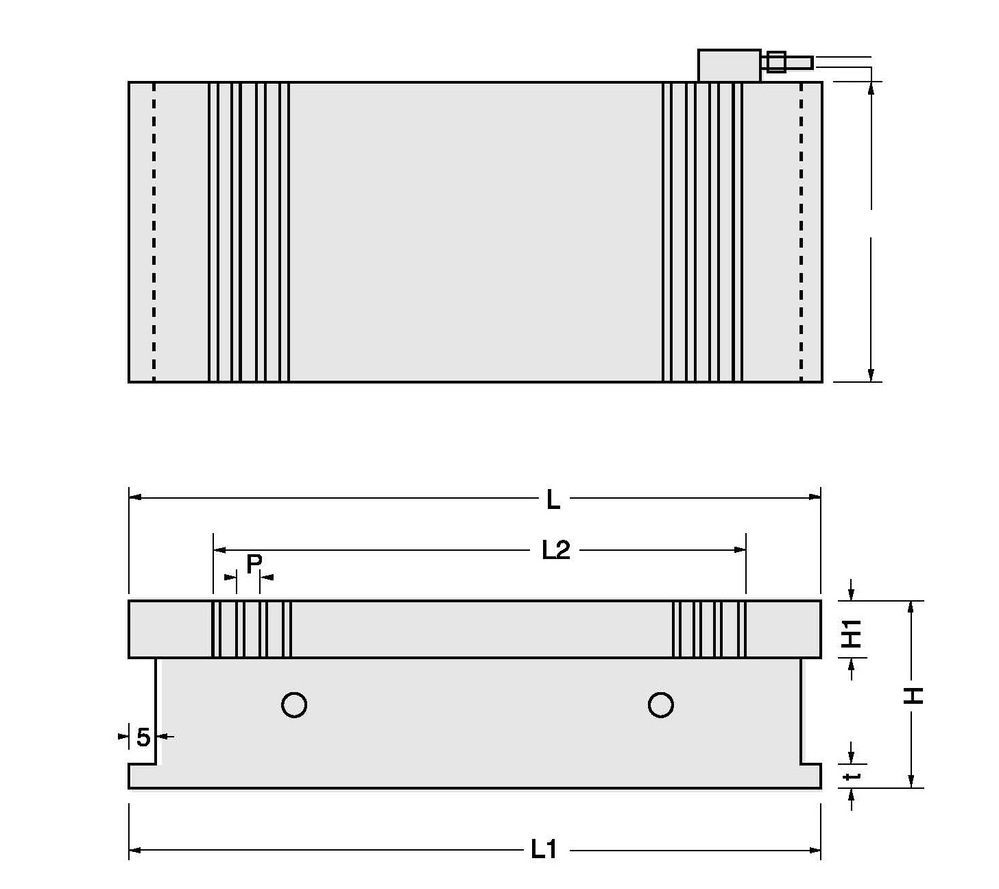

Model
Dimension
Face Plate
Pole Pitch
Bottom Plate
Voltage
Height
Weight
B
L
L2
H1
P
B
L1
t
(DC)
(H)
(KG)
GI-618
150×450
150
450
403
23
16 (3+13)
150
450
16
90V (60V-110V)
74
32
GI-816
200×400
200
400
344
16 (3+13)
200
400
16
38
GI-820
200×500
200
500
445
22 (4+18)
200
500
16
47
GI-1020
250×500
250
500
445
16 (3+13)
250
500
16
59
GI-1224
300×600
300
600
541
16 (3+13)
300
600
16
86
GI-1428
350×700
350
700
628
21.5 (4+17.5)
350
700
18
116
GI-1628
400×700
400
700
628
21.5 (4+17.5)
400
700
18
133
GI-1632
400×800
400
800
739
21 (4+17)
400
800
20
152
GI-1640
400×1000
400
1000
929
25
21.5 (4+17.5)
400
1000
20
205
GI-2040
500×1000
500
1000
929
21.5 (4+17.5)
500
1000
20
81
254
GI-2048
500×1200
500
1200
1134
22 (4+18)
500
1200
20
81
320
GI-2060
500×1500
500
1500
1420
24 (4+20)
500
1500
22
88
418
GI-2440
600×1000
600
1000
929
21.5 (4+17.5)
600
1000
20
81
320
GI-2448
600×1200
600
1200
1134
22 (4+18)
600
1200
20
81
385
GI-2460
600×1500
600
1500
1420
24 (4+20)
600
1500
22
88
522
GI-3260
800×1500
800
1500
1420
24 (4+20)
800
1500
22
88
671
