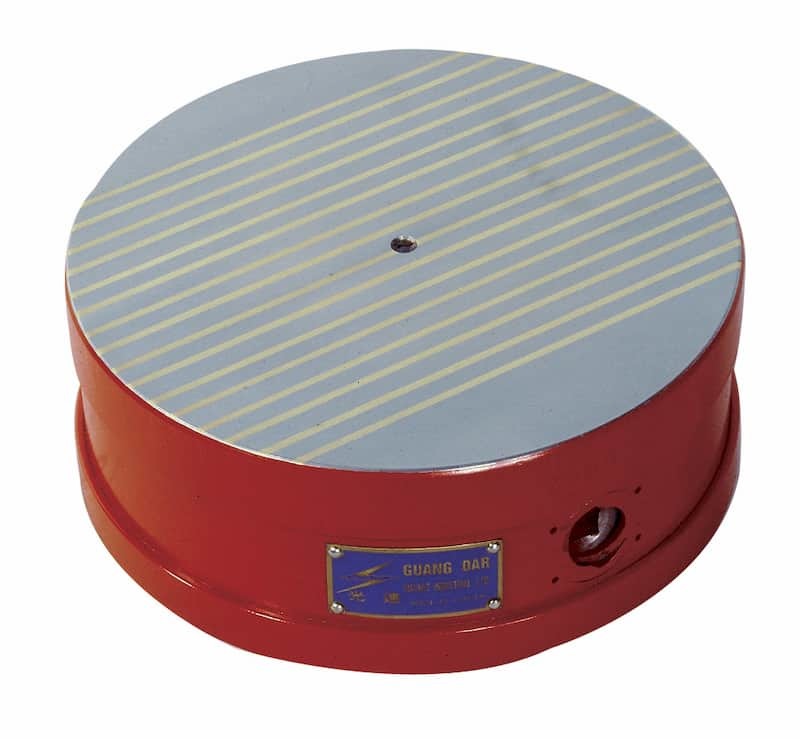

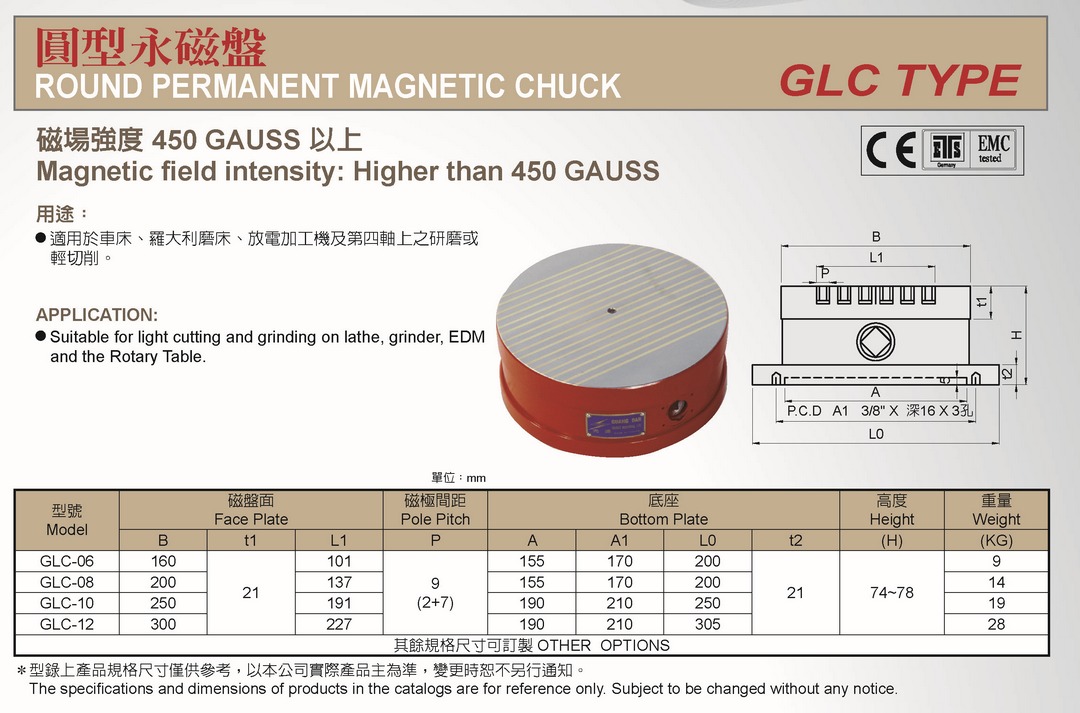

Round Permanent Magnetic Chuck
Round Permanent Magnetic Chuck
APPLICATION:
● Suitable for light cutting and grinding on lathe, grinder, EDM and the Rotary Table.
|

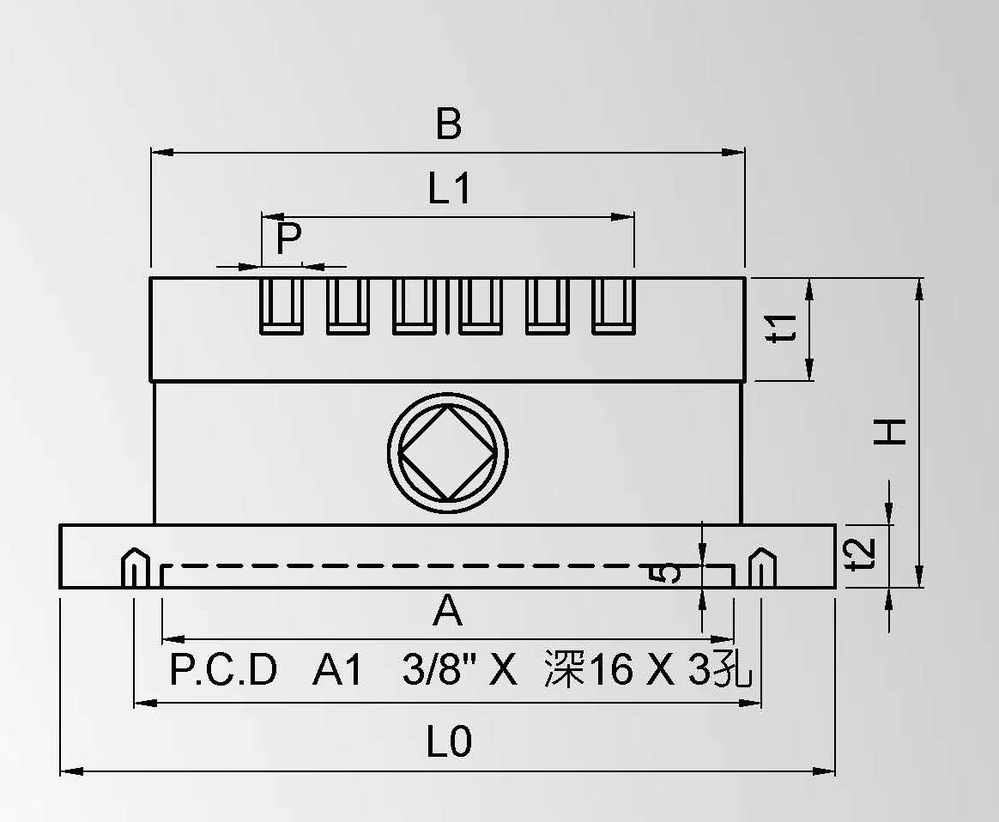

Model |
Face Plate |
Pole Pitch |
Bottom Plate |
Height |
Weight |
|||||
|
B |
t1 |
L1 |
P |
A |
A1 |
L0 |
t2 |
(H) |
(KG) |
|
|
GLC-06 |
160 |
21 |
101 |
9 (2+7) |
155 |
170 |
200 |
21 |
74~78 |
9 |
|
GLC-08 |
200 |
137 |
155 |
170 |
200 |
14 |
||||
|
GLC-10 |
250 |
191 |
190 |
210 |
250 |
19 |
||||
|
GLC-12 |
300 |
227 |
190 |
210 |
305 |
28 |
||||
|
OTHER OPTIONS |
||||||||||
