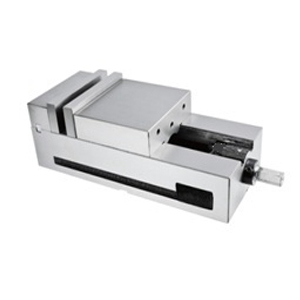

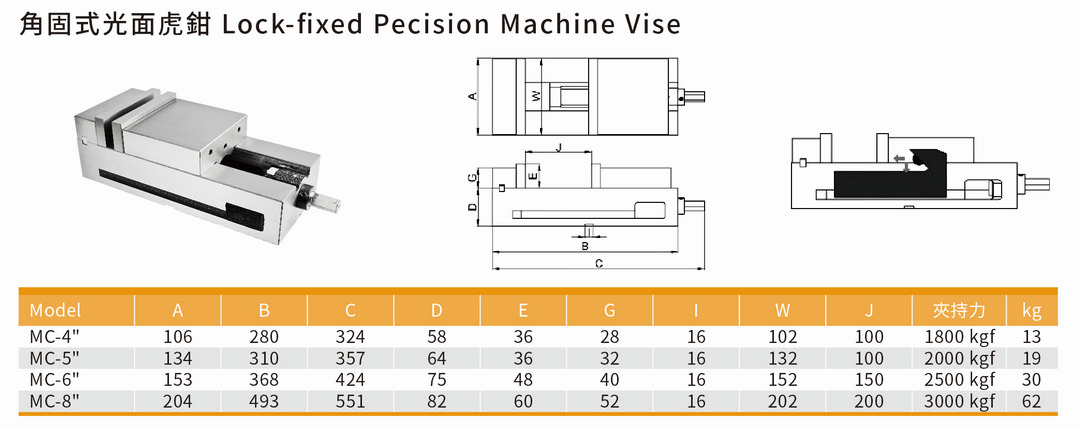

LOCK-FIXED PRECISION MACHINE VISE
MC -LOCK-FIXED PRECISION MACHINE VISE /
Angle solid smooth vise MC
|

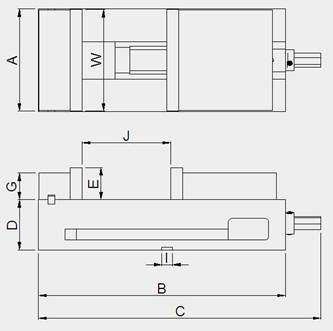

MODEL |
A |
B |
C |
D |
E |
G |
I |
W |
J |
Clamping force (MAX) |
Weight KG |
|
MC-4" |
106 |
280 |
324 |
58 |
36 |
28 |
16 |
102 |
100 |
1,800kgf |
13 |
|
MC-5" |
134 |
310 |
357 |
64 |
36 |
32 |
16 |
132 |
100 |
2,000kgf |
19 |
|
MC-6" |
153 |
368 |
424 |
75 |
48 |
40 |
16 |
152 |
150 |
2,500kgf |
30 |
|
MC-8" |
204 |
493 |
551 |
82 |
60 |
52 |
16 |
202 |
200 |
3,000kgf |
62 |
Features：
l This product has been six surface grinding, high accuracy, dual-use includes parallel and side to be cross-functional than the traditional angle lock vise better.
l Angle lock semi-sphere can be generated under the power of the lock, removes the workpiece to be lifted.
l Vise body material is high ductility of cast iron, vise both sides of the slide hardened heat (HRC45°), ensure high precision and high wear resistance, high tensile strength.
