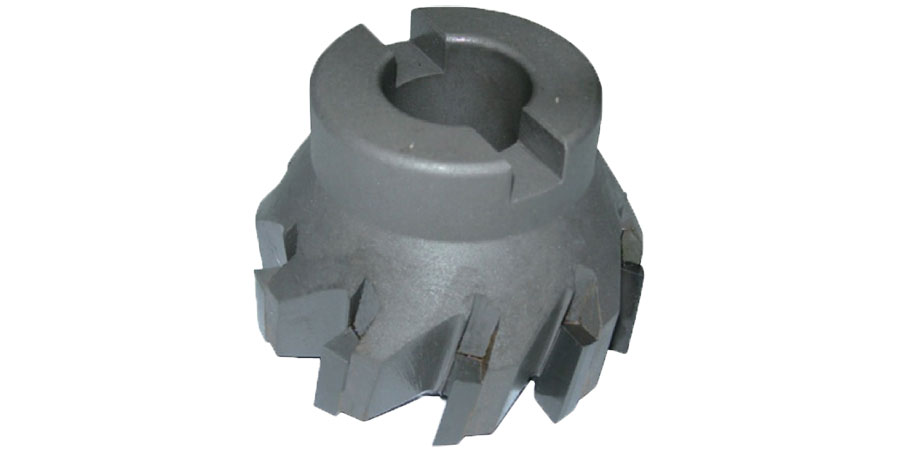

CARBIDE TIPPED POWERFUL OBLIQUE TOOTH FACE MILLING CUTTER

Powerful Oblique Tooth Face Milling Cutter is welded with carbide teeth and suitable for the face milling; it is oblique tooth for breaking & releasing chip more effectively to reduce the processing obstruction.

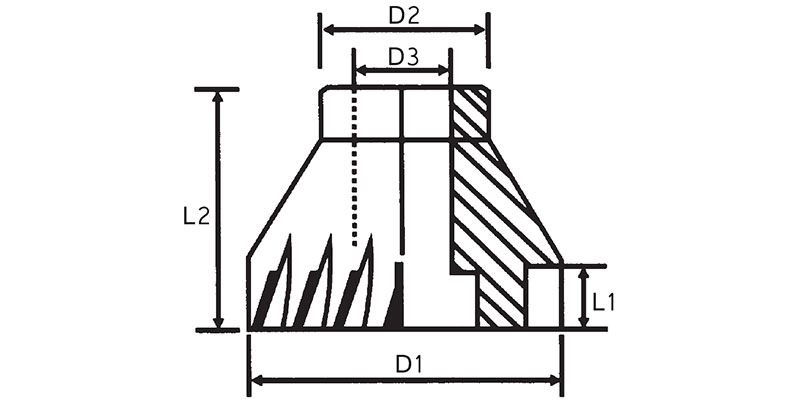

PART NO.	DIAMETER (D1)	FLUTE LENGTH (L1)	FLUTE	CONNECTING DIAMETER (D2)	BORE DIAMETER (D3)	OVERALL LENGTH (L2)
AMTR075	75	15	10	46	25.4	55
AMTR100	100	15	12	60	31.75	55
AMTR125	125	15	14	70	31.75	55
AMTR150	150	15	16	80	31.75	55
