FEATURES:
● Fine-Pole pitch design offering super holding capacity, can hold smaller andthinner workpiece.
● Triple- side magnetic field design, can apply to 90 degrees processing, orinstall to a 90 degree tools for such process.
● Use two magnetic chucks for quick workpiece swapping to save workpiece installation time. (For example, one is in processing, another one is off-line for working piece loading, then swaps the two magnetic chucks to save the processing time.).
● Magnetic force adjustable function - according to work piece size, thickness to adjust magnetic force to prevent workpiece distortion. With this function,provides you easy workpiece location and holding adjustment.
● Available to install a magnetic precision tooling on the chuck for additional application use.
● Patented product and design, low residual magnetism, provides you easy workpiece unloading ability after processing.

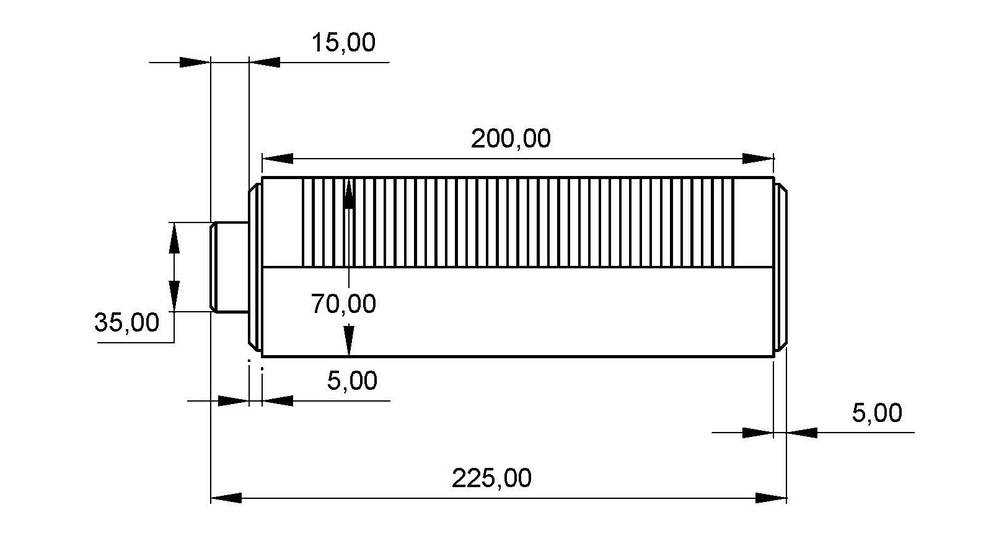

The regular specification of GLW-C7 is 70*70*200mm, excluding the base plate. If you need it, please inform us while making inquiry.
