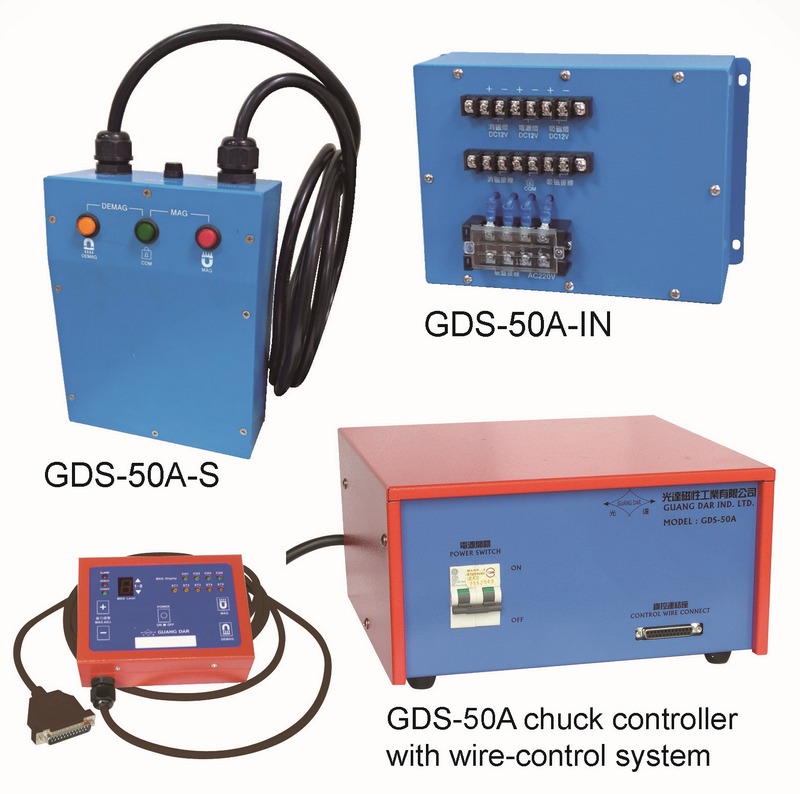

Permanent Electromagnetic Chuck Controller
Permanent Electromagnetic Chuck Controller
|

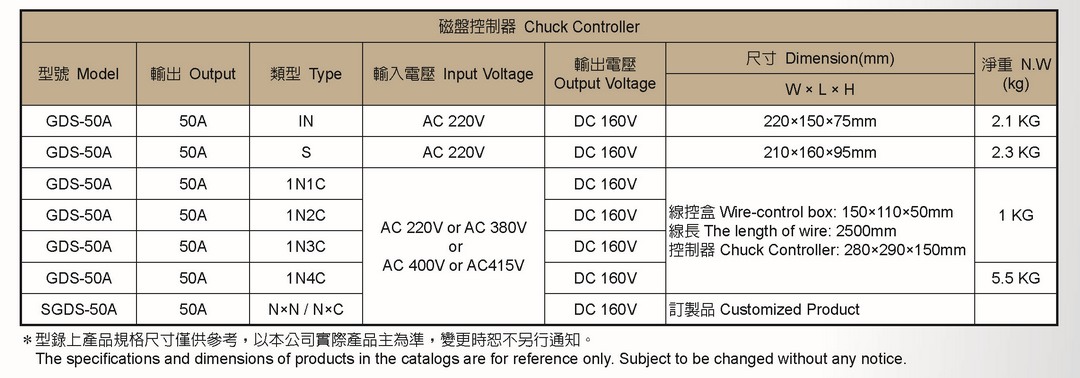

Chuck Controller |
||||||
|
Model |
Output |
Type |
Input Voltage |
Output Voltage |
Dimension(mm) |
N.W (kg) |
|
W × L × H |
||||||
|
GDS-50A |
50A |
IN |
AC 220V |
DC 160V |
220×150×75mm |
2.1 KG |
|
GDS-50A |
50A |
S |
AC 220V |
DC 160V |
210×160×95mm |
2.3 KG |
|
GDS-50A |
50A |
1N1C |
AC 220V or AC 380V or AC 400V or AC415V |
DC 160V |
Wire-control box: 150×110×50mm The length of wire: 2500mm Chuck Controller: 280×290×150mm |
1 KG |
|
GDS-50A |
50A |
1N2C |
DC 160V |
|||
|
GDS-50A |
50A |
1N3C |
DC 160V |
|||
|
GDS-50A |
50A |
1N4C |
DC 160V |
5.5 KG |
||
|
SGDS-50A |
50A |
N×N / N×C |
DC 160V |
Customized Product |
||
