SEPARATE PRECISION MACHINE

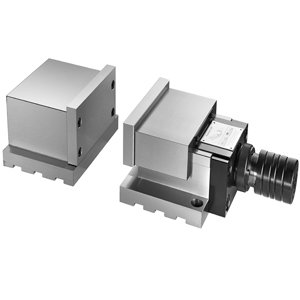

SPPV-160 -SEPARATE PRECISION MACHINE VISE
|
model |
J |
Clamping force |
journey |
|
SPPV-160 |
The opening can be adjusted according to the workpiece |
3500 kgf |
30mm |
Features：
l The vise is mainly suitable for clamping large workpiece or adjusts the position of clamping, according to the sizes of the workpiece.
l Angle lock semi-sphere can be generated under the power of the lock, remove the floating workpiece.
l To put on the workpiece directly for enhancing steady clamp, they are different than other separate vises.
l Vise body material is high ductility of spherical graphite cast iron (FCD600), vise both sides of the slide hardened heat (HRC50 °), ensure high precision and high wear resistance, high tensile strength.
l Jaw hardened heat (HRC55 °).
