52 PCS Clamping Kit Assembly
Model :
CK Clamping Kit
Clamping Kit
52 PCS Clamping Kit Assembly
l Purpose: Apply for fixing each kind of working pieces on machining table
l Material: S45C, black oxide furnished
l Heat treatment：Hardness of each part is HRC32±5°

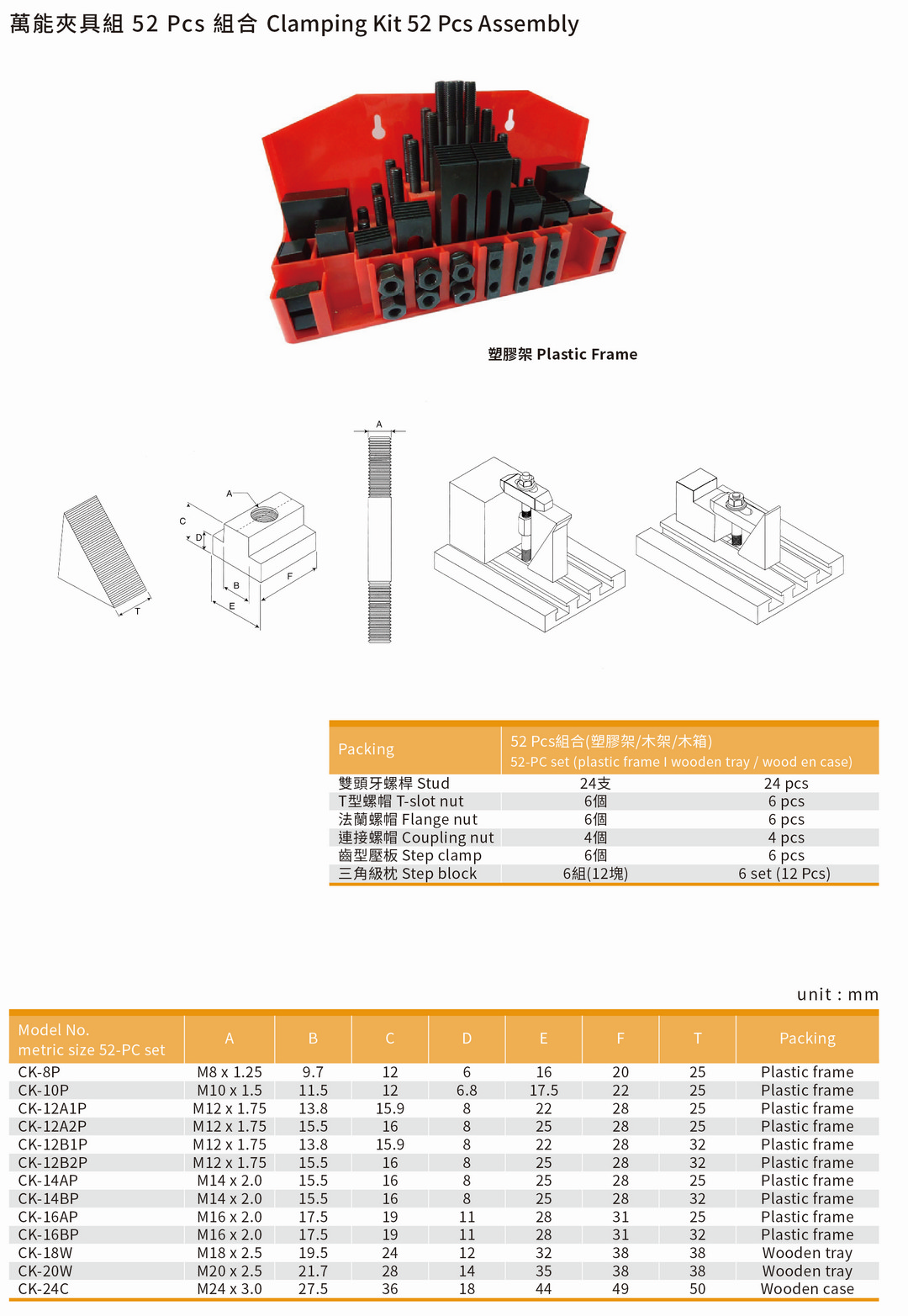

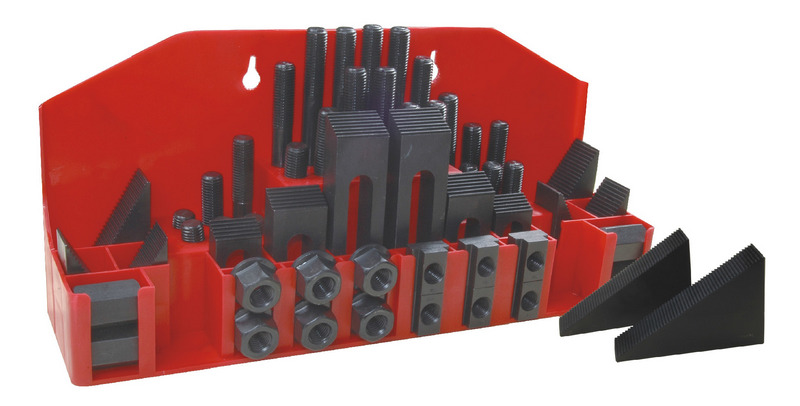

l Product including: stud 24pcs, T nut 6 pcs, flange nut 6 pcs, coupling nut 4 pcs step clamp 6 pcs, step block 6 sets(12pcs), plastic frame
l Product spec.: Inch size 3/8”/1/2”/5/8”； Metric size M8/ M10/M12 /M14/M16
| 52-PC set | |

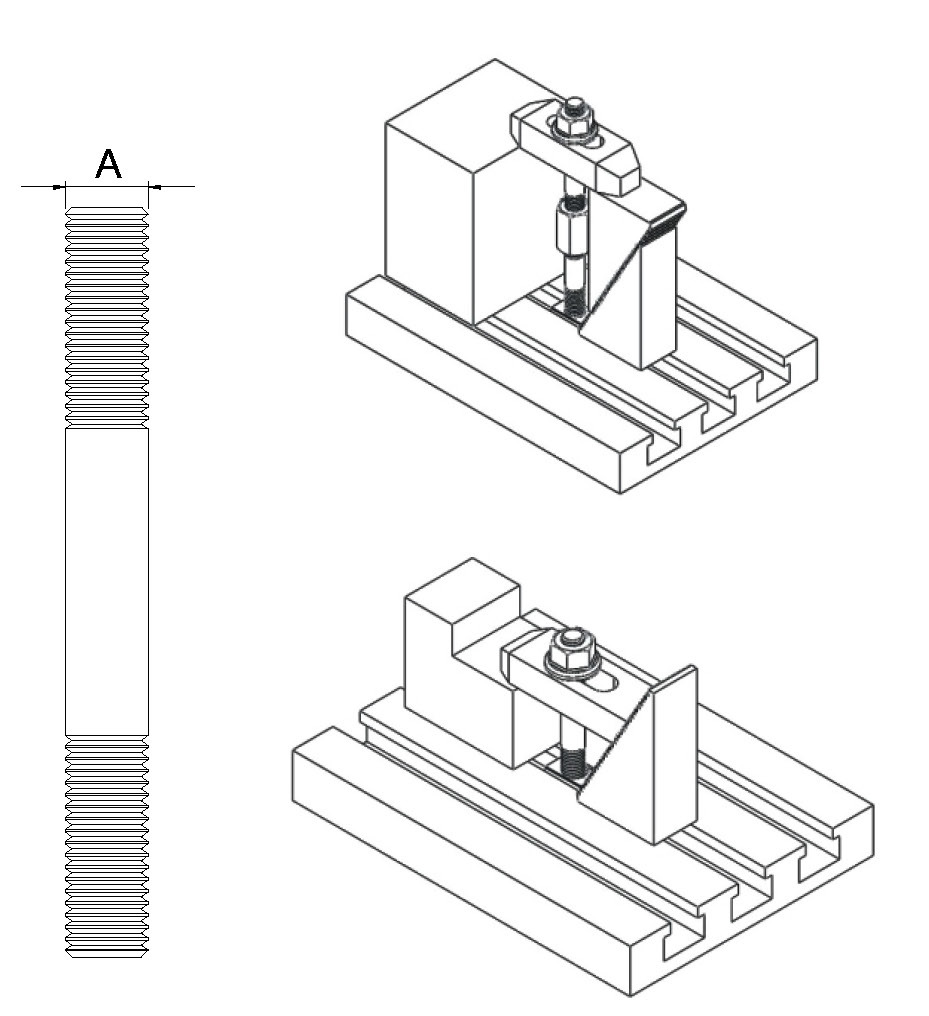

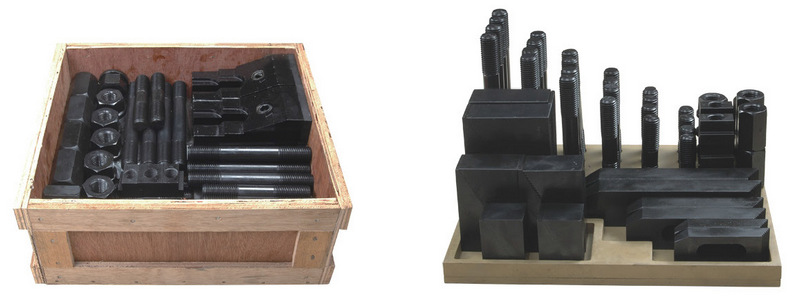

| Packing | plastic frame/woodentray/wooden case |
| Stud | 24 pcs |
| T-slot nut | 6 pcs |
| Flang nut | 6 pcs |
| Coupling nut | 4 pcs |
| Step clamp | 6 pcs |
| Step block | 6 sets(12 pcs) |

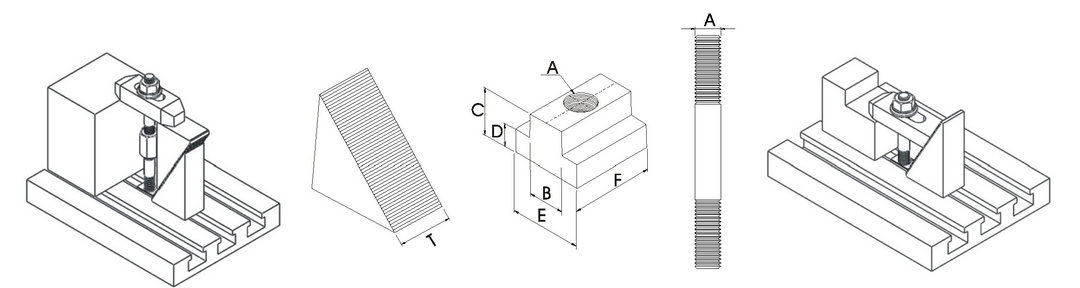

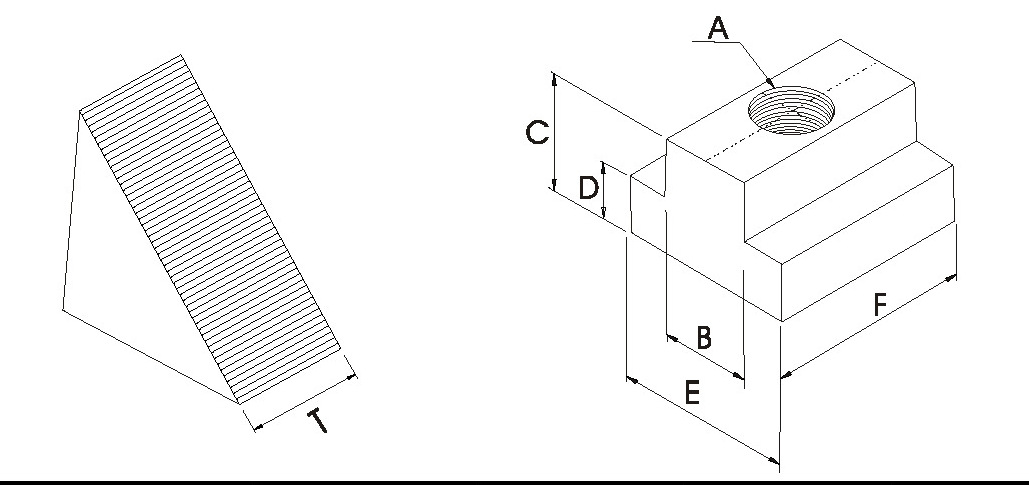

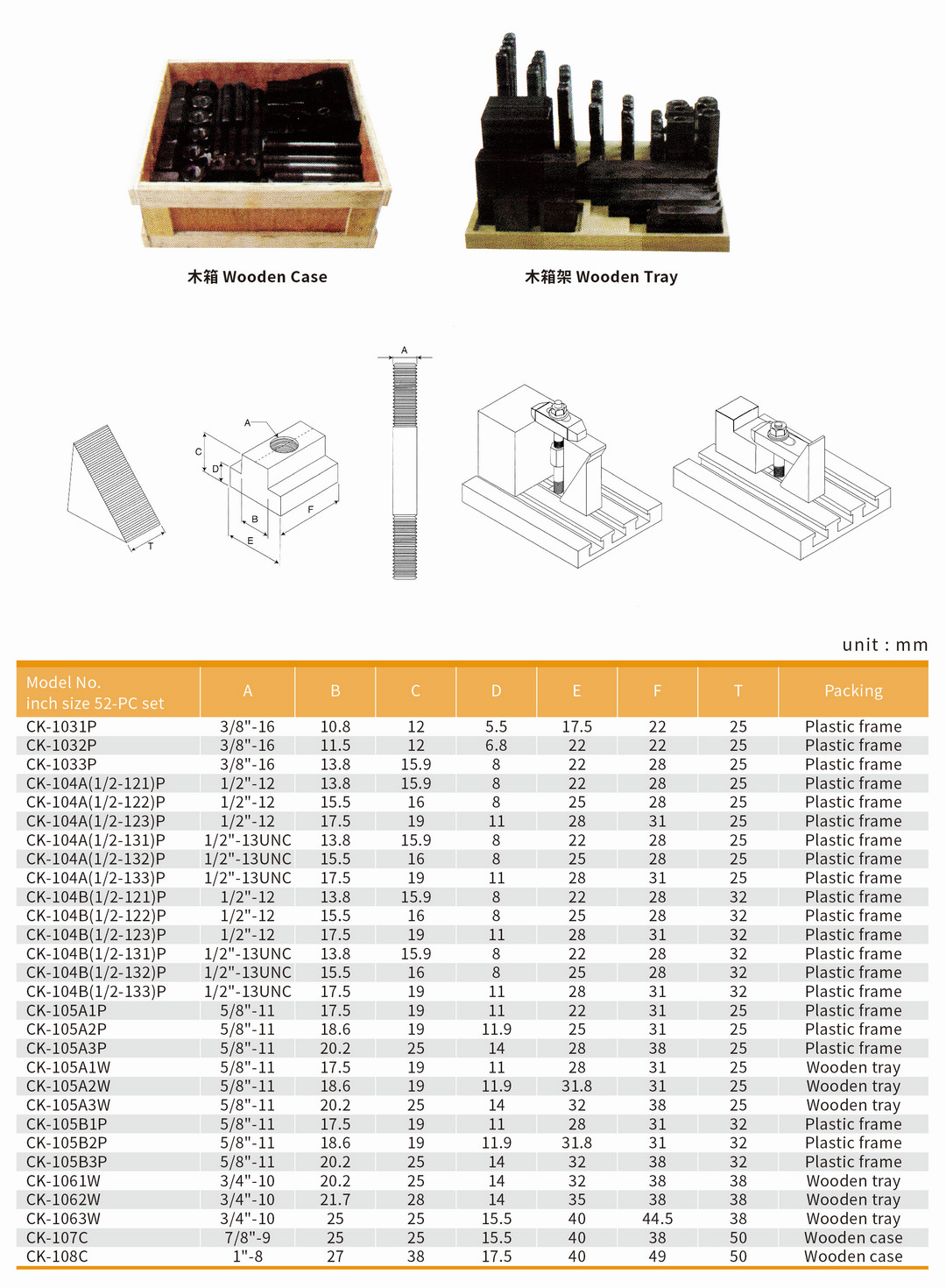

| Order No. ofinch size 52-PC set | A | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | T(mm) | Packing |
| CK-1031P | 3/8"-16 | 10.8 | 12 | 5.5 | 17.5 | 22 | 25 | Plastic frame |
| CK-1032P | 3/8"-16 | 11.5 | 12 | 6.8 | 22 | 22 | 25 | Plastic frame |
| CK-1033P | 3/8"-16 | 13.8 | 15.9 | 8 | 22 | 28 | 25 | Plastic frame |
| CK-104A(1/2-121)P | 1/2"-12 | 13.8 | 15.9 | 8 | 22 | 28 | 25 | Plastic frame |
| CK-104A(1/2-122)P | 1/2"-12 | 15.5 | 16 | 8 | 25 | 28 | 25 | Plastic frame |
| CK-104A(1/2-123)P | 1/2"-12 | 17.5 | 19 | 11 | 28 | 31 | 25 | Plastic frame |
| CK-104A(1/2-131)P | 1/2"-13UNC | 13.8 | 15.9 | 8 | 22 | 28 | 25 | Plastic frame |
| CK-104A(1/2-132)P | 1/2"-13UNC | 15.5 | 16 | 8 | 25 | 28 | 25 | Plastic frame |
| CK-104A(1/2-133)P | 1/2"-13UNC | 17.5 | 19 | 11 | 28 | 31 | 25 | Plastic frame |
| CK-104B(1/2-121)P | 1/2"-12 | 13.8 | 15.9 | 8 | 22 | 28 | 32 | Plastic frame |
| CK-104B(1/2-122)P | 1/2"-12 | 15.5 | 16 | 8 | 25 | 28 | 32 | Plastic frame |
| CK-104B(1/2-123)P | 1/2"-12 | 17.5 | 19 | 11 | 28 | 31 | 32 | Plastic frame |
| CK-104B(1/2-131)P | 1/2"-13UNC | 13.8 | 15.9 | 8 | 22 | 28 | 32 | Plastic frame |
| CK-104B(1/2-132)P | 1/2"-13UNC | 15.5 | 16 | 8 | 25 | 28 | 32 | Plastic frame |
| CK-104B(1/2-133)P | 1/2"-13UNC | 17.5 | 19 | 11 | 28 | 31 | 32 | Plastic frame |
| CK-105A1P | 5/8"-11 | 17.5 | 19 | 11 | 22 | 31 | 25 | Plastic frame |
| CK-105A2P | 5/8"-11 | 18.6 | 19 | 11.9 | 25 | 31 | 25 | Plastic frame |
| CK-105A3P | 5/8"-11 | 20.2 | 25 | 14 | 28 | 38 | 25 | Plastic frame |
| CK-105A1W | 5/8"-11 | 17.5 | 19 | 11 | 28 | 31 | 25 | Wooden tray |
| CK-105A2W | 5/8"-11 | 18.6 | 19 | 11.9 | 31.8 | 31 | 25 | Wooden tray |
| CK-105A3W | 5/8"-11 | 20.2 | 25 | 14 | 32 | 38 | 25 | Wooden tray |
| CK-105B1P | 5/8"-11 | 17.5 | 19 | 11 | 28 | 31 | 32 | Plastic frame |
| CK-105B2P | 5/8"-11 | 18.6 | 19 | 11.9 | 31.8 | 31 | 32 | Plastic frame |
| CK-105B3P | 5/8"-11 | 20.2 | 25 | 14 | 32 | 38 | 32 | Plastic frame |
| CK-1061W | 3/4"-10 | 20.2 | 25 | 14 | 32 | 38 | 38 | Wooden tray |
| CK-1062W | 3/4"-10 | 21.7 | 28 | 14 | 35 | 38 | 38 | Wooden tray |
| CK-1063W | 3/4"-10 | 25 | 25 | 15.5 | 40 | 44.5 | 38 | Wooden tray |
| CK-107C | 7/8"-9 | 25 | 25 | 15.5 | 40 | 38 | 50 | Wooden case |
| CK-108C | 1"-8 | 27 | 38 | 17.5 | 40 | 49 | 50 | Wooden case |
| Order No. of metric size 52-PC set | A | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | T(mm) | Packing |
| CK-8P | M8X1.25 | 9.7 | 12 | 6 | 16 | 20 | 25 | Plastic frame |
| CK-10P | M10X1.5 | 11.5 | 12 | 6.8 | 17.5 | 22 | 25 | Plastic frame |
| CK-12A1P | M12X1.75 | 13.8 | 15.9 | 8 | 22 | 28 | 25 | Plastic frame |
| CK-12A2P | M12X1.75 | 15.5 | 16 | 8 | 25 | 28 | 25 | Plastic frame |
| CK-12B1P | M12X1.75 | 13.8 | 15.9 | 8 | 22 | 28 | 32 | Plastic frame |
| CK-12B2P | M12X1.75 | 15.5 | 16 | 8 | 25 | 28 | 32 | Plastic frame |
| CK-14AP | M14X2.0 | 15.5 | 16 | 8 | 25 | 28 | 25 | Plastic frame |
| CK-14BP | M14X2.0 | 15.5 | 16 | 8 | 25 | 28 | 32 | Plastic frame |
| CK-16AP | M16X2.0 | 17.5 | 19 | 11 | 28 | 31 | 25 | Plastic frame |
| CK-16BP | M16X2.0 | 17.5 | 19 | 11 | 28 | 31 | 32 | Plastic frame |
| CK-18W | M18X2.5 | 19.5 | 24 | 12 | 32 | 38 | 38 | Wooden tray |
| CK-20W | M20X2.5 | 21.7 | 28 | 14 | 35 | 38 | 38 | Wooden tray |
| CK-24C | M24X3.0 | 27.5 | 36 | 18 | 44 | 49 | 50 | Wooden case |
