Collet for Bench Lathe / HEX Collet
Collet for Bench Lathe / Push Type CNC Collet / Pull Type Collet / HEX Collet
YB15 YB20 YB25 YB32 YB42 5C 16C
C25 C32 SD45 SD52 CNC42 CNC52 C-4 CT-5 CT-6 CT-9 CT-12

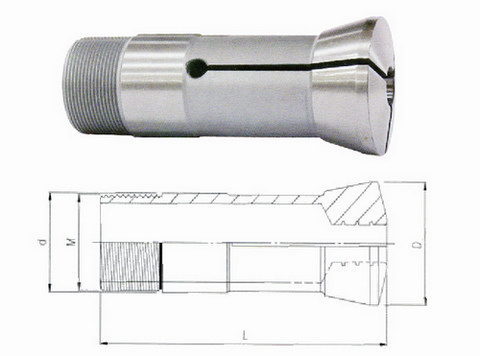

Collet for Bench Lathe - Pull Type Collet、5C Collet
-YB15 YB20 YB25 YB32 YB42 5C 16C
|
Type |
D Diameter |
d Diameter |
L Length |
M Thread |
Max. size ○ |
Max. size ◇ |
Max. size □ |
Remarks |
|
YB15 |
26 |
19 |
76 |
M18.1 x P1.2 |
15 |
13 |
10 |
|
|
YB20 |
33 |
25 |
102 |
M24 x P1.5 |
20 |
17 |
14 |
|
|
YB25 |
39.5 |
32 |
102 |
M31.3 x 20T |
25 |
21 |
17 |
|
|
YB32 |
49.5 |
39 |
120 |
M38 x 18T |
32 |
27 |
22 |
|
|
YB42 |
64 |
52 |
138 |
M50 x 16T |
42 |
36 |
29 |
|
|
5C |
37.5 |
31.75 |
87 |
M31.3 x 20T |
25 |
21 |
17 |
|
|
16C |
58 |
48 |
113 |
M47.5 x P1.75 |
40 |
34 |
28 |

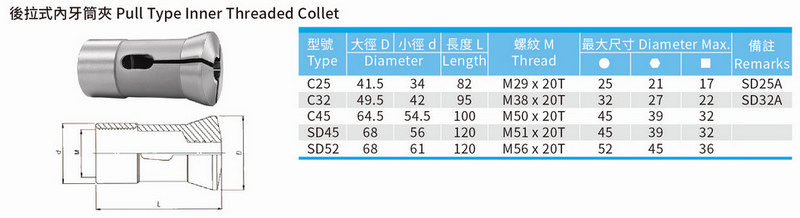

Pull type inner threaded collet - C25 C32 C45 SD45 SD52

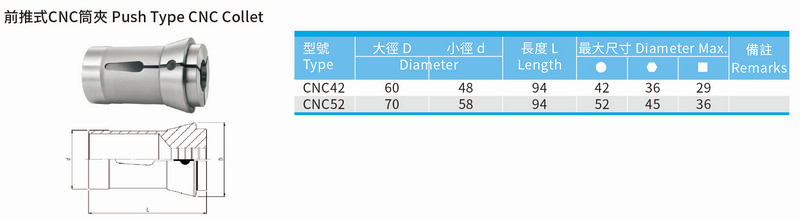

Push Type CNC Collet- CNC42 CNC52

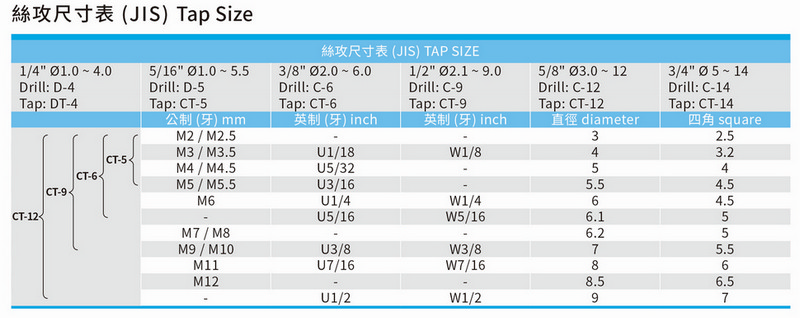

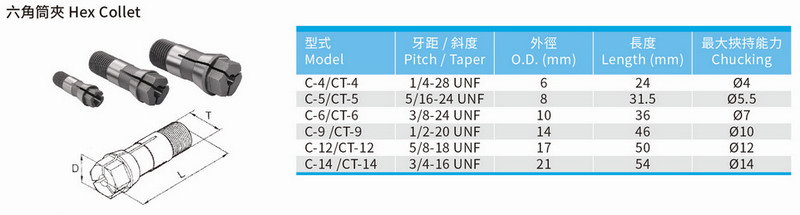

HEX COLLET- C-4 CT-4 C-5 CT-5 C-6 CT-6 C-9 CT-9 C-12 CT-12 C-14 CT-14
- Hex Collet Video
