Tapping Machine
Tapping Machine
-Clutch Type Tapping Machine
-Electronic Drilling Tapping Machine

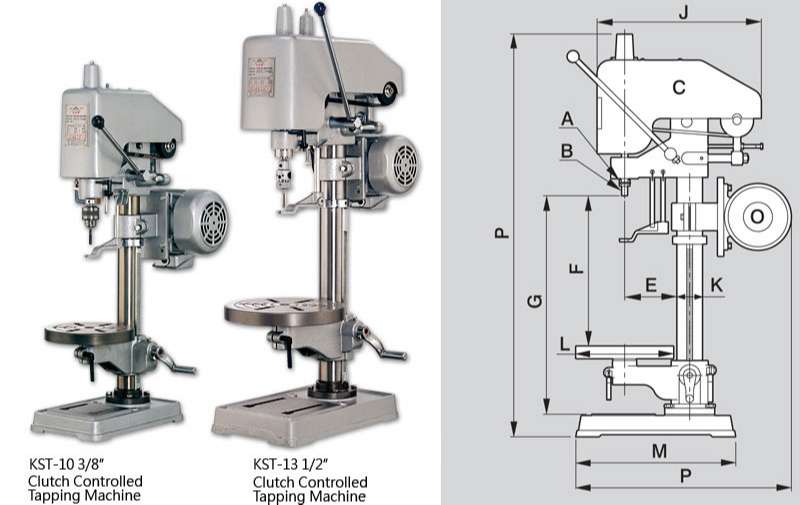

KST-10 3/8" Clutch Type Tapping
Machine
KST-13 1/2" Clutch Type Tapping
Machine
FEATURES
The clutch controlled tapping machine is suitable for small lot and thin sheet metal. For mass production, the electronic tapping machine is suggested for effortless and fast tapping operations.
unit : mm
|
|
MODEL |
KST-10 |
KST-13 |
|
A |
Diameter of quill |
Ø15 |
Ø52 |
|
B |
Spindle taper |
JT2# (3/8) |
JT6# (1/2) |
|
C |
Spindle step |
2 |
3 |
|
D |
Spindle travel |
30 |
45 |
|
E |
Spindle to column |
126 |
175 |
|
F |
Spindle to table |
260 |
460 |
|
G |
Spindle to base |
440 |
640 |
|
H |
Drilling capacity |
- |
- |
|
I |
Tapping cap. Steel |
Ø2-Ø6 |
Ø5-Ø10 |
|
|
Tapping cap. Cast iron |
Ø2-Ø10 |
Ø5-Ø13 |
|
J |
Cover sizes |
360x150x226 |
530x215x255 |
|
K |
Column diameter |
Ø60 |
Ø73xØ80 |
|
L |
Table diameter |
Ø230 |
Ø320 |
|
M |
Base sizes |
380x235 |
500x300 |
|
N |
Speed 50Hz |
710-1120 |
260-720 |
|
|
Speed 60Hz |
850-1360 |
310-860 |
|
O |
Motor |
1/2(HP) |
1/2；1 (HP) |
|
P |
Machine sizes |
510x250x950 |
610x310x1170 |
|
Q |
Machine weight |
60kg |
110kg |
Hexangular collets and chucks and other accessories are not included for the above machine products
KST-340 5/8" Electronic Drilling
Tapping Machine
KST-560 1" Electronic Drilling
Tapping Machine
KST-670 1-1/4" Electronic Drilling
Tapping Machine
FEATURES
The clutch controlled tapping machine is suitable for small lot and thin sheet metal. For mass production, the electronic tapping machine is suggested for effortless and fast tapping operations.
unit : mm
|
|
MODEL |
KST-340 |
KST-560 |
KST-670 |
|
A |
Diameter of quill |
Ø65 |
Ø80 |
Ø95 |
|
B |
Spindle taper |
MT2# |
MT3# |
MT3# (MT4 #) |
|
C |
Spindle step |
9 |
9 |
9 |
|
D |
Spindle travel |
85 |
115 |
140 |
|
E |
Spindle to column |
175 |
214 |
230 |
|
F |
Spindle to table |
430 |
660 |
630 |
|
G |
Spindle to base |
610 |
950 |
930 |
|
H |
Drilling capacity |
Ø3-Ø16 |
Ø6-Ø30 |
Ø8-Ø32 |
|
I |
Tapping cap. Steel |
Ø5-Ø10 |
Ø8-Ø16 |
Ø8-Ø19 |
|
|
Tapping cap. Cast iron |
Ø5-Ø13 |
Ø8-Ø19 |
Ø8-Ø21 |
|
J |
Cover sizes |
608x214x110 |
727x255x137 |
725x262x157 |
|
K |
Column diameter |
Ø80 |
Ø92 |
Ø102 |
|
L |
Table diameter |
Ø320 |
Ø380 |
Ø420 |
|
M |
Base sizes |
500x300 |
615x385 |
615x385 |
|
N |
Speed 50Hz |
170-2300 |
110-1450 |
120-1500 |
|
|
Speed 60Hz |
200-2700 |
130-1700 |
150-1700 |
|
O |
Motor |
1/2；1(HP) |
1(HP) |
2(HP) |
|
P |
Machine sizes |
680x320x1085 |
780x380x1510 |
840x420x1545 |
|
Q |
Machine weight |
100kg |
157kg |
205kg |
Hexangular collets and chucks and other accessories are not included for the above machine products
