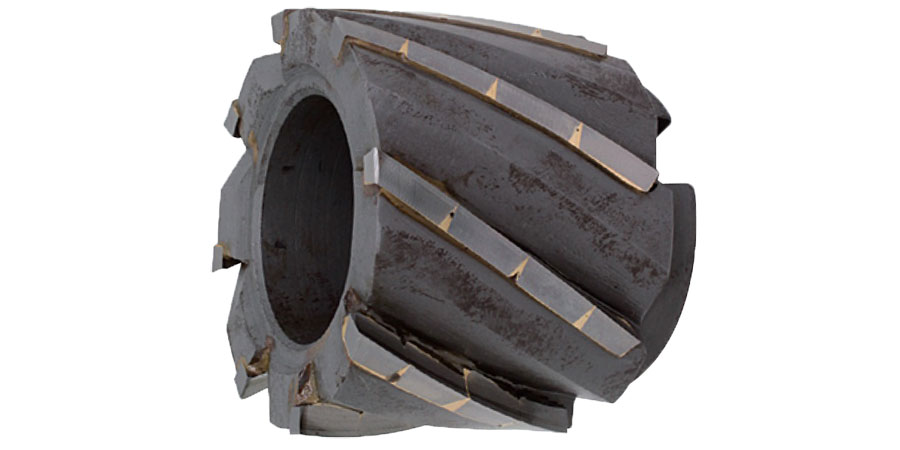

CARBIDE TIPPED CYLINDRICAL ROUGHING MILLING CUTTER (MULTIPLE CONNECTED FLUTES)

Cylindrical Roughing Milling Cutter (Multiple Connected Flutes), the flutes are made of multiple connected short flutes & carbide material to be a long flute and then welded on cutter, it can avoid the breakage during heavy milling and can mill quickly, suitable for rough machining and heavy cutting as well as with good chip release, excellent cutting ability and high metal cutting rate.

PART NO.	DIAMETER (D1)	FLUTE LENGTH (L1)	FLUTE	CONNECTING DIAMETER (D2)	BORE DIAMETER (D3)	OVERALL LENGTH (L2)
AUTB50-50	50	50	6	-	25.4	65
AUTB50-75	50	75	6	-	25.4	92
AUTB50-100	50	100	6	-	25.4	112
AUTB60-50	60	50	6	55	31.75	67
AUTB60-60	60	60	6	55	31.75	75
AUTB60-75	60	75	6	55	31.75	92
AUTB60-100	60	100	6	55	31.75	112
AUTB75-50	75	50	8	60	31.75	65
AUTB75-75	75	75	8	60	31.75	90
AUTB75-100	75	100	8	60	31.75	115
AUTB75-125	75	125	8	60	31.75	140
AUTB80-50	80	50	8	60	31.75	65
AUTB80-80	80	80	8	60	31.75	95
