Coupling nut

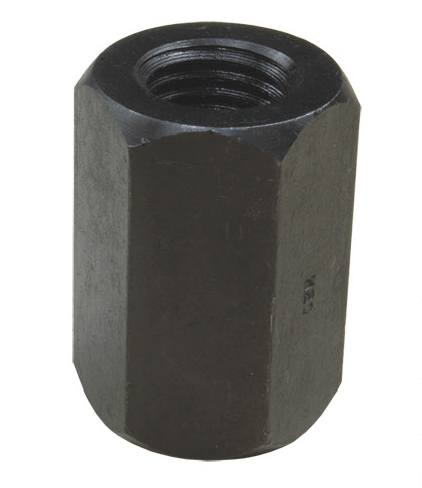

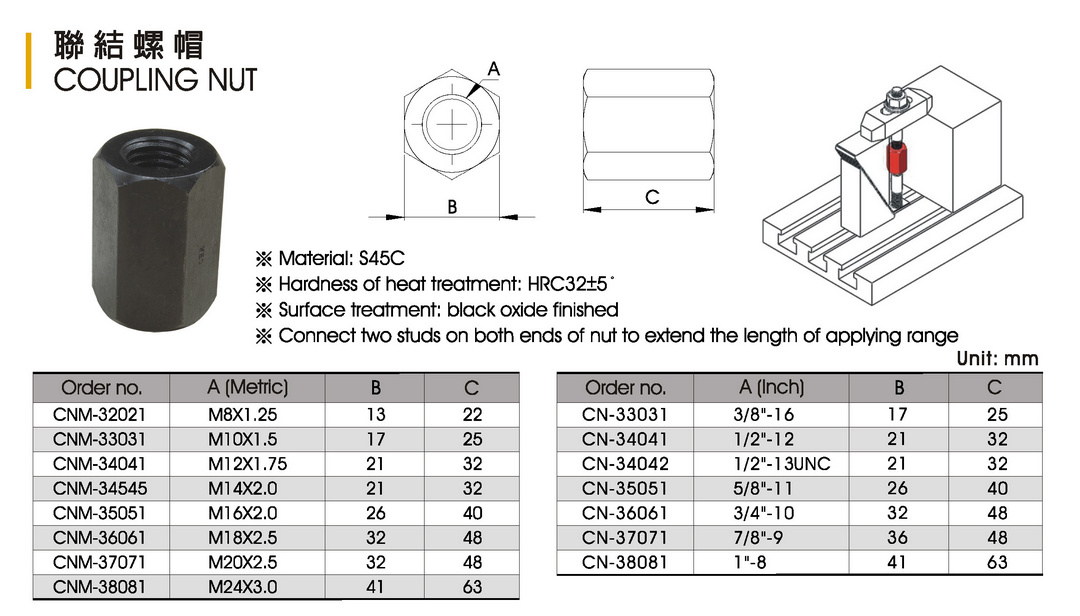

CK-CN Coupling nut
l Purpose: Connect two studs on both ends of nut to extend the length of applying range
l Material: S45C, black oxide finished
l Hardness of heat treatment：HRC32±5°
l Product spec.: Inch size 3/8”/1/2”/5/8”/3/4”/7/8”/1”； Metric size M10/M12 /M14/M16/M18/M20/M24
|

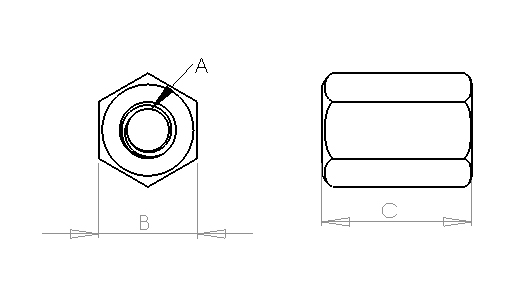

Order no. |
A (Metric) |
B |
C |
|
CNM-32021 |
M8X1.25 |
13 |
22 |
|
CNM-33031 |
M10X1.5 |
17 |
25 |
|
CNM-34041 |
M12X1.75 |
21 |
32 |
|
CNM-34545 |
M14X2.0 |
21 |
32 |
|
CNM-35051 |
M16X2.0 |
26 |
40 |
|
CNM-36061 |
M18X2.5 |
32 |
48 |
|
CNM-37071 |
M20X2.5 |
32 |
48 |
|
CNM-38081 |
M24X3.0 |
41 |
63 |
|
Order no. |
A (Inch) |
B |
C |
|
CN-33031 |
3/8"-16 |
17 |
25 |
|
CN-34041 |
1/2"-12 |
21 |
32 |
|
CN-34042 |
1/2"-13UNC |
21 |
32 |
|
CN-35051 |
5/8"-11 |
26 |
40 |
|
CN-36061 |
3/4"-10 |
32 |
48 |
|
CN-37071 |
7/8"-9 |
36 |
48 |
|
CN-38081 |
1"-8 |
41 |
63 |
