Battery Type Permanent Magnetic Lifter GM
Model :
GM

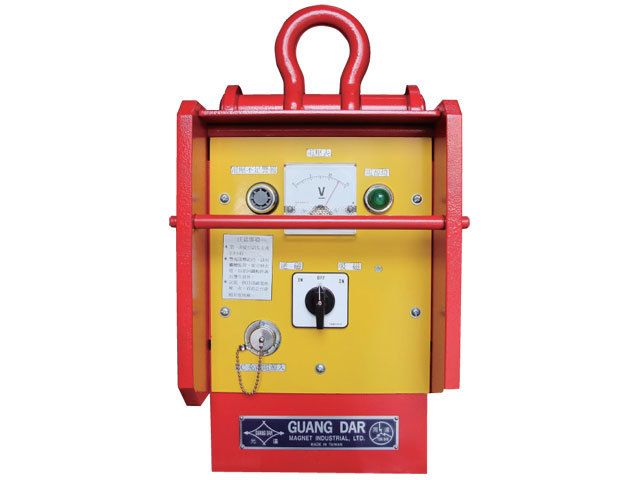

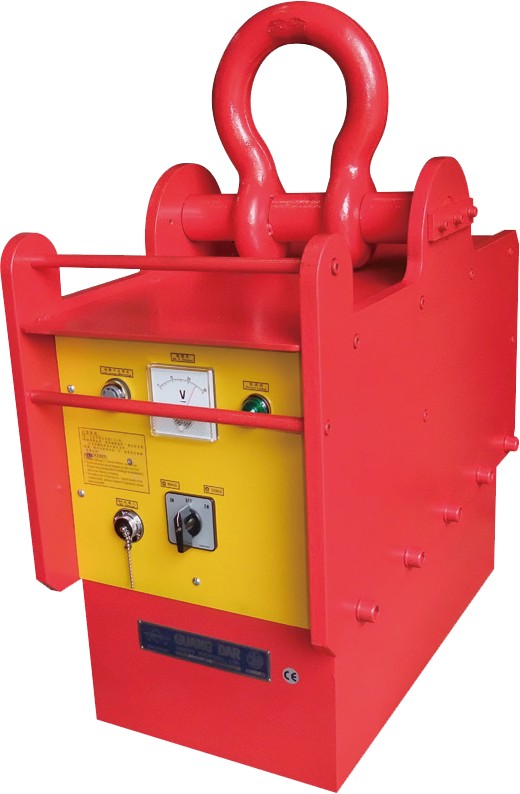

Battery Type Permanent Magnetic Lifter
APPLICATION:
● Suitable for carriage of common steel mould.
FEATURES﹕
● Built-in battery and alarm prevent trouble of broken power supply.
● Equipped with electricity charge equipment.
● High magnetic force enables carriage of mass small parts or scrap iron.
● No limitation by power supply line.
● Large working space.
● Suitable for carriage of common steel mould.
FEATURES﹕
● Built-in battery and alarm prevent trouble of broken power supply.
● Equipped with electricity charge equipment.
● High magnetic force enables carriage of mass small parts or scrap iron.
● No limitation by power supply line.
● Large working space.

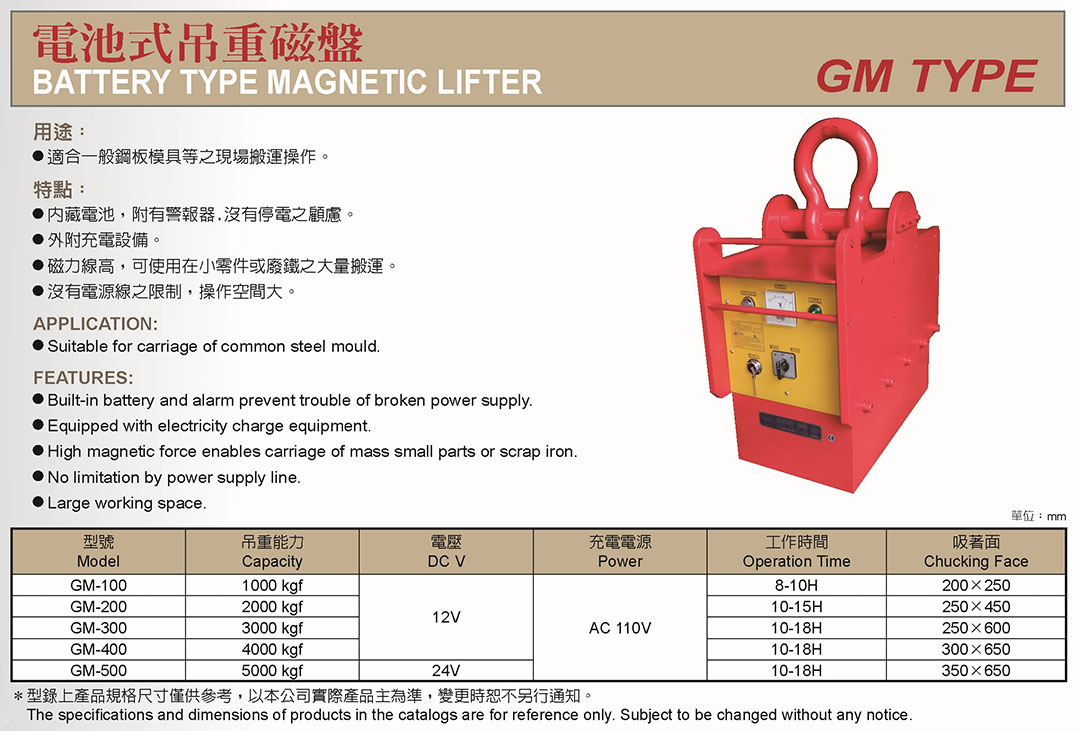

Model : GM TYPE
unit：mm
|
Model |
Capacity |
DCV |
Power |
Operation Time |
Chucking Face |
|
GM-100 |
1000 kgf |
12V |
AC 110V |
8-10H |
200×250 |
|
GM-200 |
2000 kgf |
10-15H |
250×450 |
||
|
GM-300 |
3000 kgf |
10-18H |
250×600 |
||
|
GM-400 |
4000 kgf |
10-18H |
300×650 |
||
|
GM-500 |
5000 kgf |
24V |
10-18H |
350×650 |
