Oil Skimmer Belt type Stainless Chain
Model :
oil-skimmer
Oil Skimmer Stainless Chain / Stainless Net Type / Belt type
** Free of consumables
Applicable to oil water separate on CNC machines ,restaurant,Resource recycling industry, mostly float oil can be remove by oil skimmer

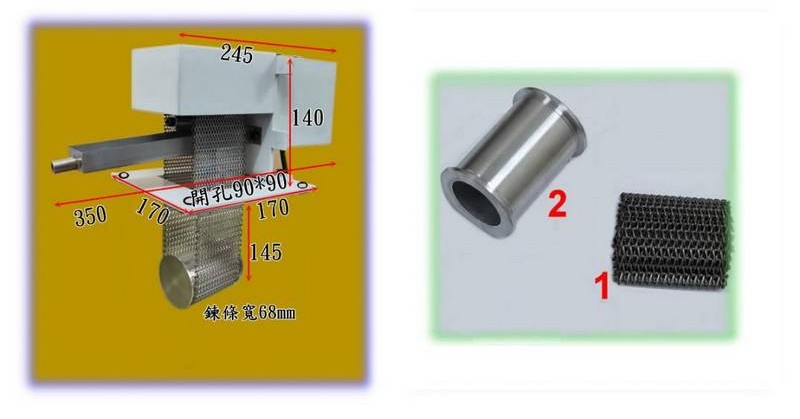

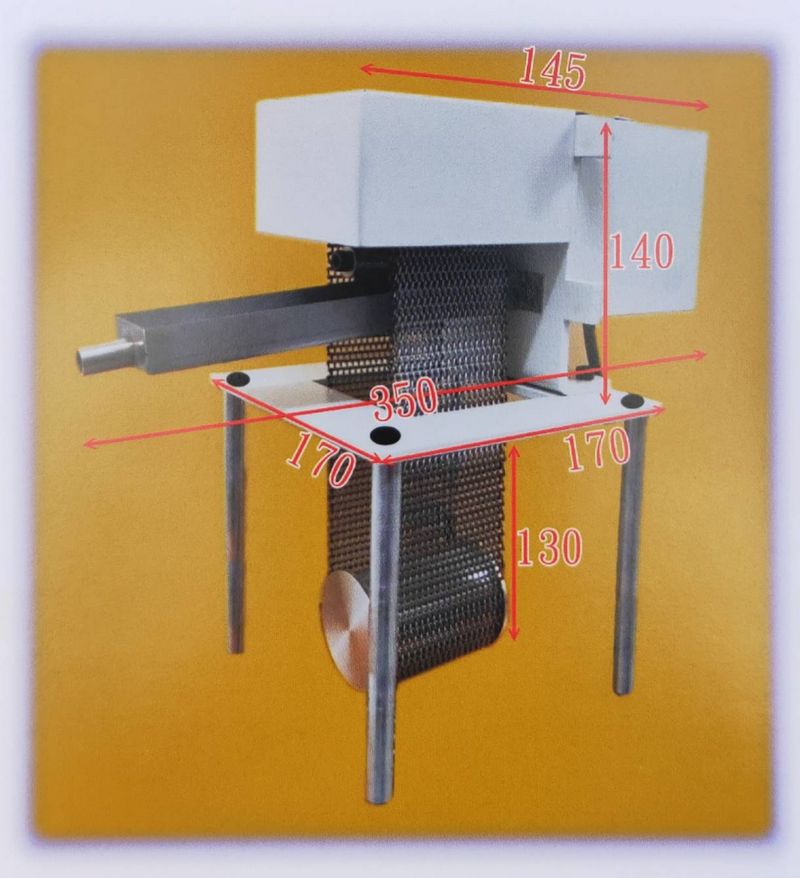

Belt width : 78 mm with stainless chain
Depth : 100 mm to 3 M
Belt : stainless
Power require :110V or 220 V
Full guarding with metal
- Comparison of various types of Oil Skimmer
Belt type: Afraid of heat, acid and alkali
Rigid belt type: Afraid of bending and deformation
+ Chain type: not afraid of heat, acid and alkali resistance, not afraid of folding, not easy to deform, no need for oil and water separation box, good performance and easy to clean
-
DIY Installation Instructions
-
Cut an opening in the sink cover: 10 × 10 cm.
-
Place the magnetic strip (1).
-
Install the roller (2).
-
Place the oil-water separator into the opening.
-
Plug in the power and turn on the switch.
-
Finished.
PS: Remember to prepare a bucket to collect the waste oil.
Example:
