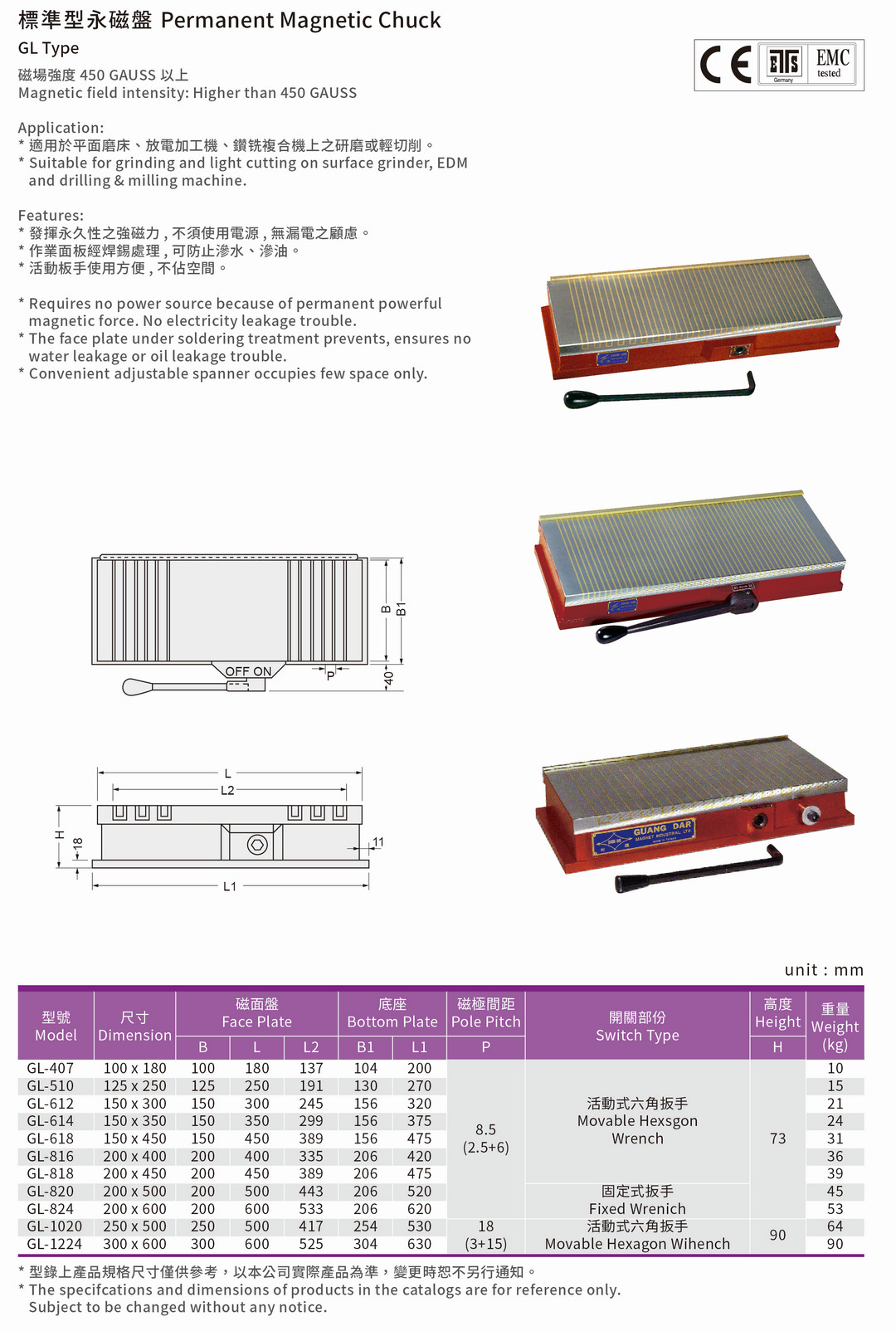

Permanent Magnetic Chuck
Permanent Magnetic Chuck
APPLICATION:
● Suitable for grinding and light cutting on surface grinder, EDM and drilling & milling machine.
FEATURES﹕
● The magnetic force is not required by supply power source so no electricity leakage trouble.
● The face plate is made under soldering treatment to prevent water or oil leakage.
● Adjustable spanner is convenient to use and occupied few space only.
|
Model |
Dimension |
Face Plate |
Bottom Plate |
Pole Pitch |
Switch Type |
Height |
Weight |
|||
|
B |
L |
L2 |
B1 |
L1 |
P |
(H) |
(KG) |
|||
|
GL-407 |
100×180 |
100 |
180 |
137 |
104 |
200 |
8.5 (2.5+6) |
MOVABLE HEXAGON WRENCH |
73 |
10 |
|
GL-510 |
125×250 |
125 |
250 |
191 |
130 |
270 |
15 |
|||
|
GL-612 |
150×300 |
150 |
300 |
245 |
156 |
320 |
21 |
|||
|
GL-614 |
150×350 |
350 |
299 |
375 |
24 |
|||||
|
GL-618 |
150×450 |
450 |
389 |
475 |
31 |
|||||
|
GL-816 |
200×400 |
200 |
400 |
335 |
206 |
420 |
36 |
|||
|
GL-818 |
200×450 |
450 |
389 |
475 |
39 |
|||||
|
GL-820 |
200×500 |
500 |
443 |
520 |
FIXED WRENCH |
45 |
||||
|
GL-824 |
200×600 |
600 |
533 |
620 |
53 |
|||||
|
GL-1020 |
250×500 |
250 |
500 |
417 |
254 |
530 |
18 (3+15) |
MOVABLE HEXAGONWRENCH |
90 |
64 |
|
GL-1224 |
300×600 |
300 |
600 |
525 |
304 |
630 |
90 |
|||
