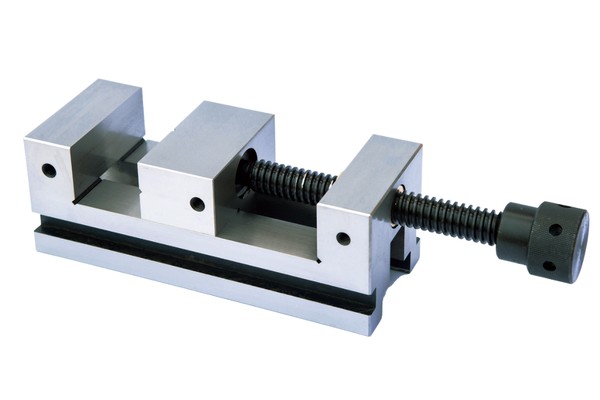

TOOL MAKER VISE OF SCREW TYPE - VE-Z
TOOL MAKER VISE OF SCREW TYPE - VE-Z
THE BODY FEATURES A THROUGH-SLOT DESIGN ON BOTH SIDES
PARALLELISM: 0.005 MM / 100 MM
PERPENDICULARITY: 0.005 MM / 100 MM
|

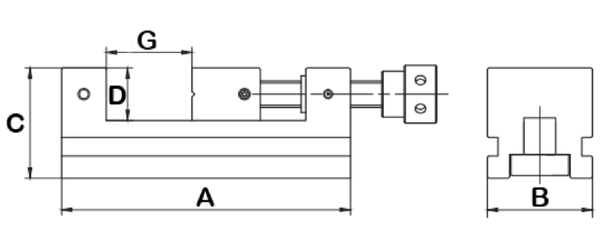

MODEL |
A |
B |
C |
D |
G |
HARDNESS |
KG |
|
VE-20-Z |
110 |
60 |
50 |
25 |
55 |
HRC58~62 |
2.4 |
|
VE-25-Z |
190 |
63 |
65 |
32 |
85 |
3.8 |
|
|
VE-30-Z |
210 |
73 |
74 |
35 |
100 |
5.0 |
|
