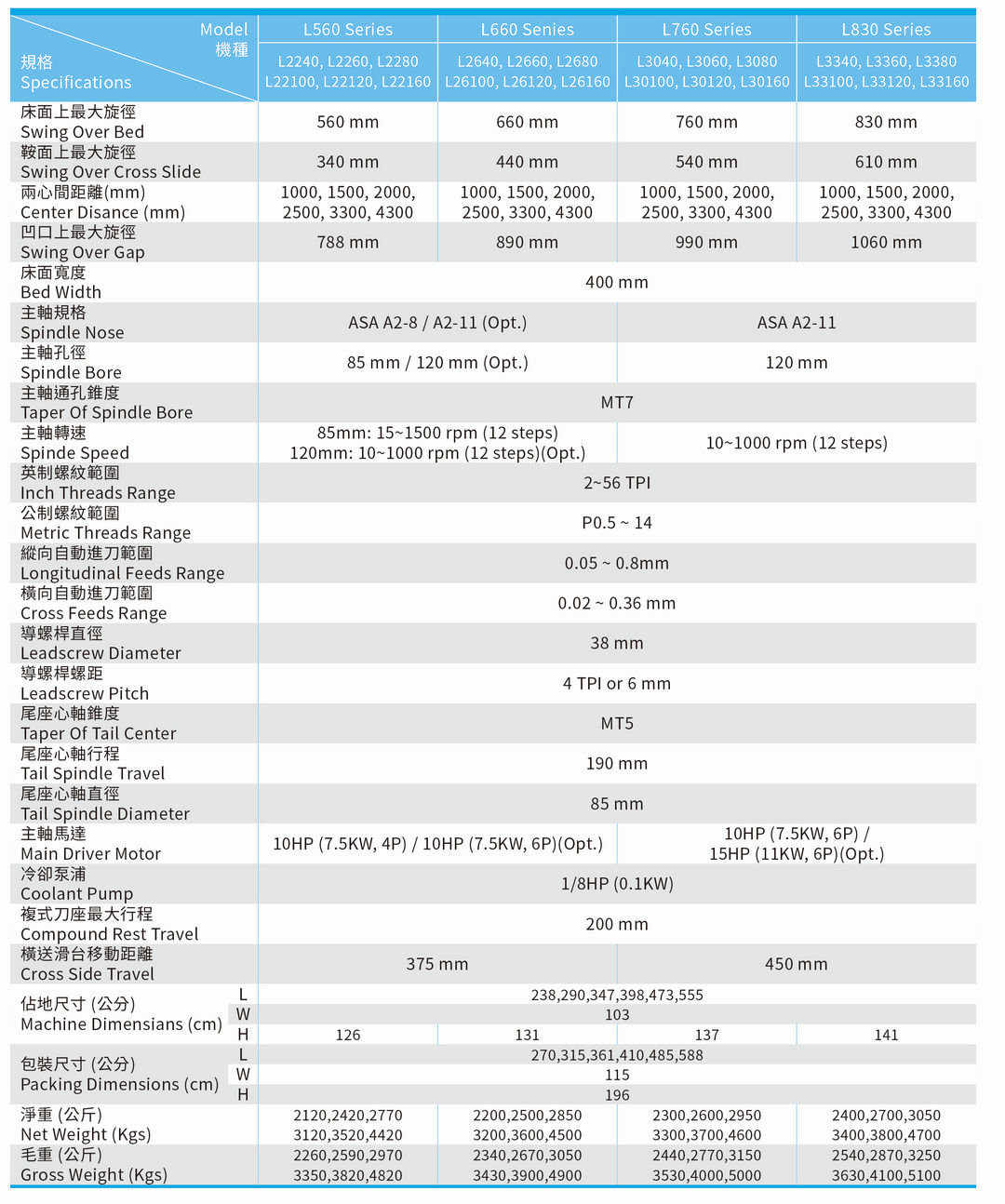

L560 Series

Specifications   /   Model

L2240

L2260

L2280

L22100

L22120

L22160

Swing Over Bed

560 mm (22")

Swing Over Cross Slide

340 mm (13-1/3")

Center Height

280 mm (11")

Distance Between Centers

1000 mm (40")

1500 mm (60")

2000 mm (80")

2500 mm (100")

3300 mm (132")

4300 mm (172")

Swing Over Gap

788 mm (31")

Width Of Bed

400 mm (15-3/4")

Spindle Nose

ASA D1 - 8 / D1 - 11 ( Opt. )

Spindle Bore

85 mm (3-1/3") / 120 mm (4-1/2") Opt. )

Taper of Spindle Bore

MT 7

Range of Spindle Speed

15 ~ 1500 R.P.M. ( 12 steps )-spindle bore :85mm /10 ~ 1000 R.P.M. ( 12 steps )-spindle bore :120mm

Inch Threads Range

2 ~ 56 T.P.I.

Metric Threads Range

P 0.5 ~ P 14

Longitudinal Feeds Range

0.05 ~ 0.82 mm (0.002-0.032")

Cross Feeds Range

0.02 ~ 0.4 mm (0.001-0.0094")

Leadscrew Diameter

38 mm (1-1/2")

Leadscrew Pitch

4 TPI or 6 mm

Taper of Tail Center

MT 5

Tail Spindle Travel

165 mm (6-1/2")

Tail Spindle Diameter

85 mm (3-1/3")

Main Drive Motor

10HP (7.5KW) / 15HP/6P (11KW) ( Opt. )

Coolant Pump

1/8 HP (0.1KW)

Compound Rest Travel

200 mm (8")

Cross Slide Travel

375 mm (14-3/4")

Machine Dimensions (cm)

238 x 103 x 126

290 x 103 x 126

347 x 103 x 126

398 x 103 x 126

473 x 103 x 126

555 x 103 x 126

Packing Dimension (cm)

252 x 115 x 193

300 x 115 x 193

361 x 115 x 193

426 x 115 x 193

485 x 115 x 193

588 x 115 x 193

Net Weight

2200

2550

2900

3150

3650

4860

Gross Weight

2300

2650

3050

3300

3800

5060

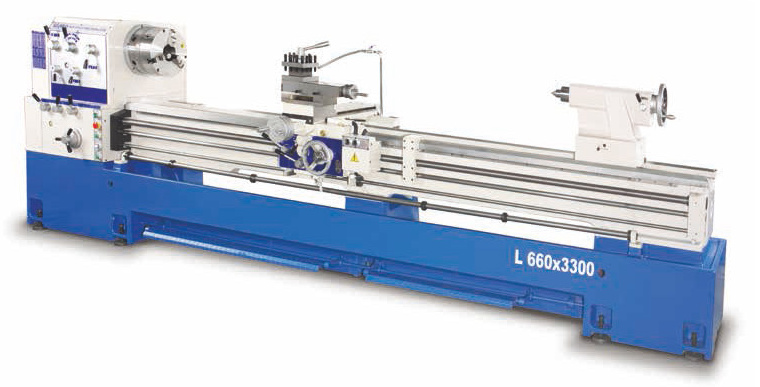

L660 Series

Specifications   /   Model

L2640

L2660

L2680

L26100

L26120

L26160

Swing Over Bed

660 mm (26")

Swing Over Cross Slide

440 mm (17-1/3")

Center Height

330 mm (13")

Distance Between Centers

1000 mm (40")

1500 mm (60")

2000 mm (80")

2500 mm (100")

3300 mm (132")

4300 mm (172")

Swing Over Gap

890 mm (35")

Width Of Bed

400 mm (15-3/4")

Spindle Nose

ASA D1 - 8 / D1 - 11 ( Opt. )

Spindle Bore

85 mm (3-1/3") / 120 mm (4-1/2") Opt. )

Taper of Spindle Bore

MT 7

Range of Spindle Speed

15 ~ 1500 R.P.M. ( 12 steps )-spindle bore :85mm /10 ~ 1000 R.P.M. ( 12 steps )-spindle bore :120mm

Inch Threads Range

2 ~ 56 T.P.I.

Metric Threads Range

P 0.5 ~ P 14

Longitudinal Feeds Range

0.05 ~ 0.82 mm (0.002-0.032")

Cross Feeds Range

0.02 ~ 0.4 mm (0.001-0.0094")

Leadscrew Diameter

38 mm (1-1/2")

Leadscrew Pitch

4 TPI or 6 mm

Taper of Tail Center

MT 5

Tail Spindle Travel

165 mm (6-1/2")

Tail Spindle Diameter

85 mm (3-1/3")

Main Drive Motor

10HP (7.5KW) / 15HP/6P (11KW) ( Opt. )

Coolant Pump

1/8 HP (0.1KW)

Compound Rest Travel

200 mm (8")

Cross Slide Travel

375 mm (14-3/4")

Machine Dimensions (cm)

238 x 103 x 131

290 x 103 x 131

347 x 103 x 131

398 x 103 x 131

473 x 103 x 131

555 x 103 x 131

Packing Dimension (cm)

252 x 115 x 193

300 x 115 x 193

361 x 115 x 193

426 x 115 x 193

485 x 115 x 193

588 x 115 x 193

Net Weight

2280

2630

2980

3230

3730

4940

Gross Weight

2380

2730

3130

3380

3880

5140

L760 Series

Specifications/Model

L3040

L3060

L3080

L30100

L30120

L30160

Swing Over Bed

760 mm (30")

Swing Over Cross Slide

540 mm (21-1/4")

Center Height

380 mm (15")

Distance Between Centers

1000 mm (40")

1500 mm (60")

2000 mm (80")

2500 mm (100")

3300 mm (132")

4300 mm (172")

Swing Over Gap

990 mm (39")

Width Of Bed

400 mm (15-3/4")

Spindle Nose

ASA D1 - 11

Spindle Bore

120 mm (4-1/2")

Taper of Spindle Bore

MT 7

Range of Spindle Speed

15 ~ 1500 R.P.M. ( 12 steps )-spindle bore :85mm /10 ~ 1000 R.P.M. ( 12 steps )-spindle bore :120mm

Inch Threads Range

2 ~ 56 T.P.I.

Metric Threads Range

P 0.5 ~ P 14

Longitudinal Feeds Range

0.05 ~ 0.82 mm (0.002-0.032")

Cross Feeds Range

0.02 ~ 0.4 mm (0.001-0.0094")

Leadscrew Diameter

38 mm (1-1/2")

Leadscrew Pitch

4 TPI or 6 mm

Taper of Tail Center

MT 5

Tail Spindle Travel

165 mm (6-1/2")

Tail Spindle Diameter

85 mm (3-1/3")

Main Drive Motor

15HP/6P (11KW)

Coolant Pump

1/8 HP (0.1KW)

Compound Rest Travel

200 mm (8")

Cross Slide Travel

375 mm (14-3/4")

Machine Dimensions (cm)

238 x 103 x 137

290 x 103 x 137

347 x 103 x 137

398 x 103 x 137

473 x 103 x 137

555 x 103 x 137

Packing Dimension (cm)

252 x 115 x 193

300 x 115 x 193

361 x 115 x 193

426 x 115 x 193

485 x 115 x 193

588 x 115 x 193

Net Weight

2360

2710

3060

3310

3810

5020

Gross Weight

2460

2810

3210

3460

3960

5220

L830 Series

Specifications   /   Model

L3340

L3360

L3380

L33100

L33120

L33160

Swing Over Bed

830 mm (33")

Swing Over Cross Slide

610 mm (24")

Center Height

415 mm (16")

Distance Between Centers

1000 mm (40")

1500 mm (60")

2000 mm (80")

2500 mm (100")

3300 mm (132")

4300 mm (172")

Swing Over Gap

1060 mm (42")

Width Of Bed

400 mm (15-3/4")

Spindle Nose

ASA D1 - 11

Spindle Bore

120 mm (4-1/2")

Taper of Spindle Bore

MT 7

Range of Spindle Speed

15 ~ 1500 R.P.M. ( 12 steps )-spindle bore :85mm /10 ~ 1000 R.P.M. ( 12 steps )-spindle bore :120mm

Inch Threads Range

2 ~ 56 T.P.I.

Metric Threads Range

P 0.5 ~ P 14

Longitudinal Feeds Range

0.05 ~ 0.82 mm (0.002-0.032")

Cross Feeds Range

0.02 ~ 0.4 mm (0.001-0.0094")

Leadscrew Diameter

38 mm (1-1/2")

Leadscrew Pitch

4 TPI or 6 mm

Taper of Tail Center

MT 5

Tail Spindle Travel

165 mm (6-1/2")

Tail Spindle Diameter

85 mm (3-1/3")

Main Drive Motor

15HP/6P (11KW)

Coolant Pump

1/8 HP (0.1KW)

Compound Rest Travel

200 mm (8")

Cross Slide Travel

375 mm (14-3/4")

Machine Dimensions (cm)

238 x 103 x 141

290 x 103 x 141

347 x 103 x 141

398 x 103 x 141

473 x 103 x 141

555 x 103 x 141

Packing Dimension (cm)

252 x 115 x 193

300 x 115 x 193

361 x 115 x 193

426 x 115 x 193

485 x 115 x 193

588 x 115 x 193

Net Weight

2410

2760

3110

3360

3860

5070

Gross Weight

2510

2860

3260

3510

4010

5270
