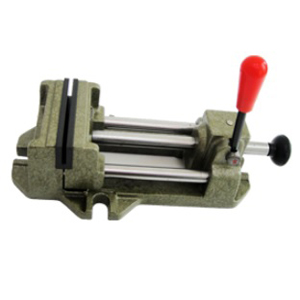

QUICK GRIP DRILL PRESS VISE A TYPE - CVK
CVK-A QUICK GRIP DRILL PRESS VISE A TYPE
|

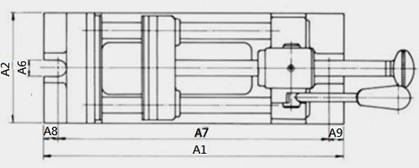

model |
A1 |
A2 |
A3 |
A4 |
A5 |
A6 |
A7 |
A8 |
A9 |
|
CVK-103-100 |
280 |
104 |
104 |
86 |
17 |
120 |
151 |
15 |
41 |
|
CVK-103-150 |
365 |
156 |
156 |
100 |
23 |
189 |
223 |
20 |
66 |
|
CVK-103-200 |
426 |
204 |
204 |
111 |
19 |
241 |
271 |
18 |
73 |
|

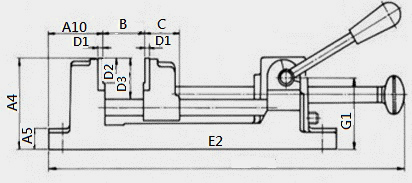

model |
A10 |
A11 |
A12 |
A13 |
A14 |
B |
C |
D1 |
D2 |
|
CVK-103-100 |
84 |
164 |
16 |
16 |
58 |
119 |
32.5 |
5 |
25 |
|
CVK-103-150 |
127 |
215 |
16 |
10 |
76 |
158 |
39 |
6 |
33 |
|
CVK-103-200 |
131 |
257 |
19 |
19 |
76 |
209 |
36 |
6 |
33 |
|
model |
D3 |
E1 |
E2 |
F1 |
F2 |
F3 |
G1 |
weight |
|
|
CVK-103-100 |
42 |
49 |
435 |
37 |
74 |
Ф15.5 |
67.5 |
6.1KG |
|
|
CVK-103-150 |
51 |
54 |
574 |
40 |
108 |
Ф18.5 |
77 |
13.2KG |
|
|
CVK-103-200 |
54 |
66 |
678 |
47 |
152 |
Ф21.5 |
91 |
20.0KG |
|
Feature：
l Made of FC25 the high tensile casting.
l Sliding rounded bar design make the griping rapid and precise.
l L-step jaw set clamps work piece firmly vertical sides of the body are perpendicular to the jaws.
l It allows side lay applicable.
l Recessed jaw plates for convenient leveling of work piece.
