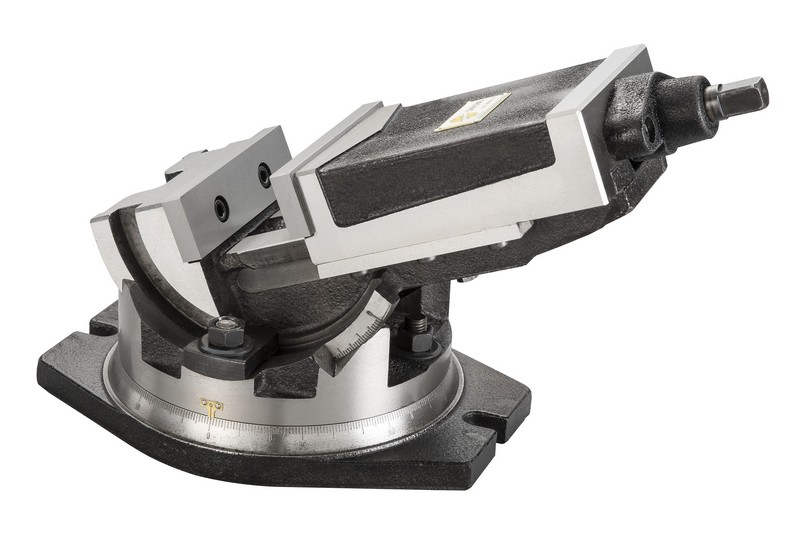

2-WAY MACHINE VISE
Model :
CU

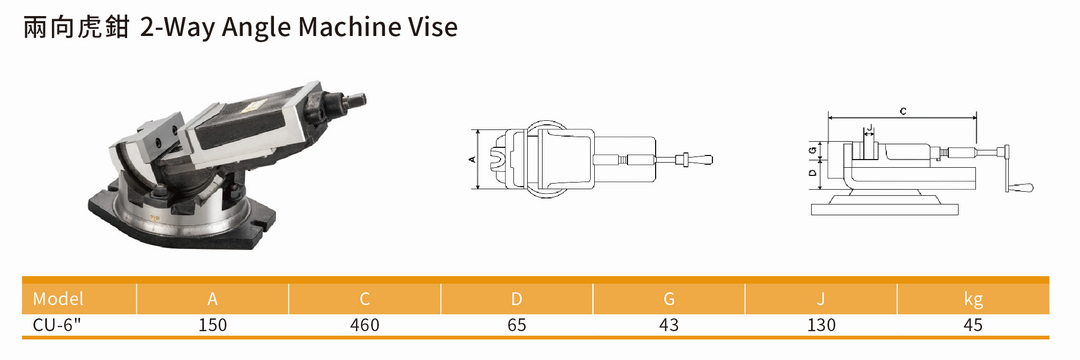

CU -2-WAY MACHINE VISE
|
MODEL |
A |
C |
D |
G |
J |
G.W. KG |
|
CU-6" |
150 |
460 |
65 |
43 |
130 |
45 |
Features：
l The adjustable vise accords to the different needs of the processing point of view, the swivel base it can rotate 360 ° , the vertical direction adjusts the angle from 0∘to 30˚, freely adjusted accurately characterize the degree to ensure accuracy.
l Vise body material is high ductility of cast iron, vise both sides of the slide hardened heat (HRC45 °), ensure high precision and high wear resistance, high tensile strength.
