LONG JAW ANGLE LOCK MACHINE VISE
XL - LONG JAW ANGLE LOCK MACHINE VISE
|

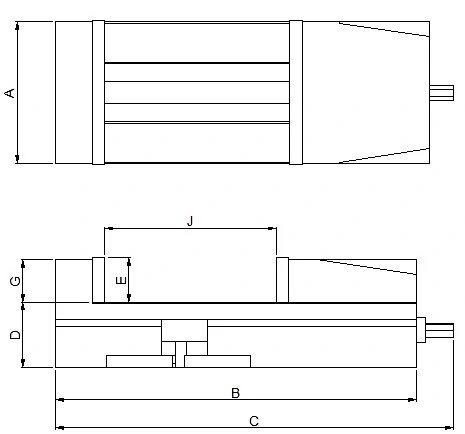

MODEL |
A |
B |
C |
D |
E |
G |
J |
Weight KG |
|
XL-8" |
200 |
510 |
560 |
92 |
63 |
60 |
260 |
72 |
Features：
l This item vise clamp have a large opening, and vise processed by integrally molded body, the combination can reduce the tolerances and deformation, and vise body structure is more robust.
l Angle lock semi-sphere can be generated under the power of the lock, removes the workpiece to be lifted. Simple structure is economical and durable type of this vise.
l Vise body material is high ductility of cast iron, vise both sides of the slide hardened heat (HRC45°), ensure high precision and high wear resistance, high tensile strength.
