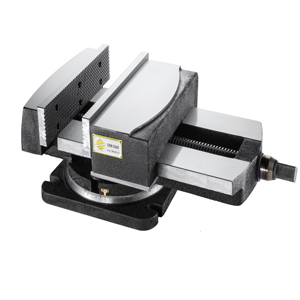

SHARPING MACHINE VISE
SKV - SHARPING MACHINE VISE
|

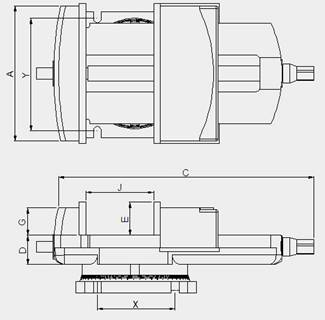

MODEL |
A |
C |
D |
E |
G |
X |
Y |
J |
Weight KG |
|
SKV-12" |
294 |
580 |
87 |
72 |
60 |
168 |
240 |
300 |
76 |
|
SKV-16" |
396 |
700 |
98 |
85 |
82 |
250 |
290 |
400 |
117 |
|
SKV-20" |
500 |
820 |
106 |
96 |
86 |
250 |
290 |
500 |
160 |
Features：
l The vise is mainly suitable for large workpiece clamping, simple structure, not easy to fault and have long-time to use.
l At present, only my company produces this vise in Taiwan.
l Vise body material is high ductility of cast iron, vise both sides of the slide hardened heat (HRC45 °), ensure high precision and high wear resistance, high tensile strength.
